Replacement Air Spring Bag for Firestone Kits and Air Line Service Kit (Replaces Firestone 6781 Ride Rite)
Replacement Air Spring Bag for Firestone Kits and Air Line Service Kit (Replaces Firestone 6781 Ride Rite) - b) Air Bag with Air Line Kit
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Orders placed after the cut-off time will ship the next business day. Orders placed over the weekend will be shipped the following Monday. You’ll get a shipment notification email with a tracking number as soon as your package ships.
Disclaimer: During times of high order volume this timing may fluctuate, however, we always strive to ship out orders same day, prior to cut-off times. If extended delays occur for any reason, we will communicate as needed.
Shipping is free for all orders.
Replacement Air Spring Bag for Firestone Kits and Air Line Service ...
Highlight title
Text to highlight a key feature of your product
Description
Description
- High-Quality Torque Air Spring Bag for Air Helper Kit
- High-Quality Torque Air Line Servis Kit
- For Following Ride-Rite Kits: 2025, 2071, 2100, 2101, 2109, 2115, 2116, 2147, 2153, 2170, 2176, 2190, 2218, 2220, 2245, 2249, 2250, 2251, 2253, 2255, 2264, 2286, 2304, 2355, 2362, 2425, 2455

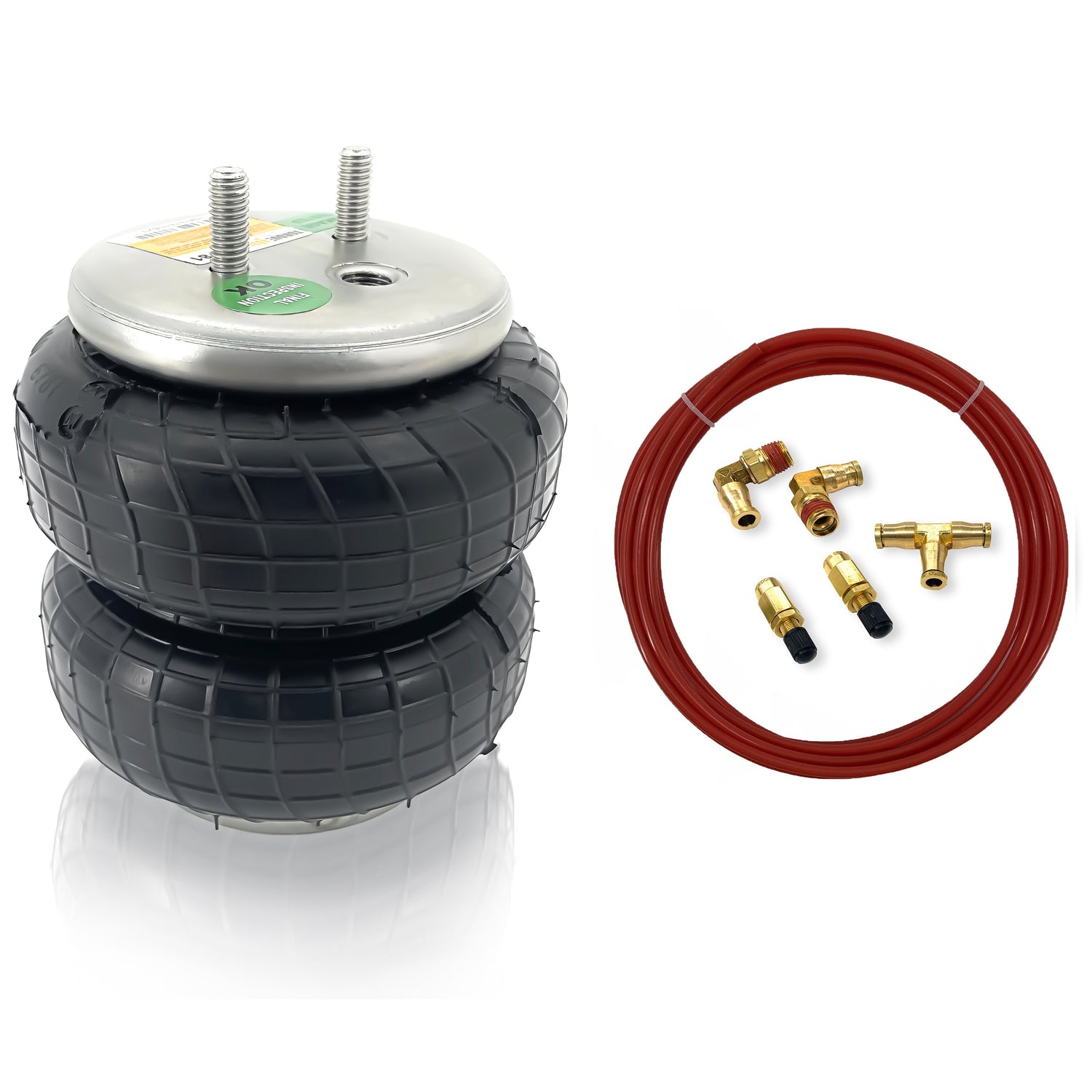

- Package includes:
(1 Pack) Air Spring Bag for Air Helper Kits
(1 Pack) 20 Feet of Black or Red 1/4 inch Air Line Tubing
(1 Pack) Union Tee with PTC (Push to Connect)
(2 Pack) Air Inflation Schrader Valve with PTC (Push to Connect) - Threaded portion length: 3 /4"
(2 Pack) 1/4 NPT Elbow Fitting with PTC (Push to Connect) - 90 Degree Swivel
Replaces
Firestone: W21-760-6781, A01-760-6781, 6781, WR1-760-2012

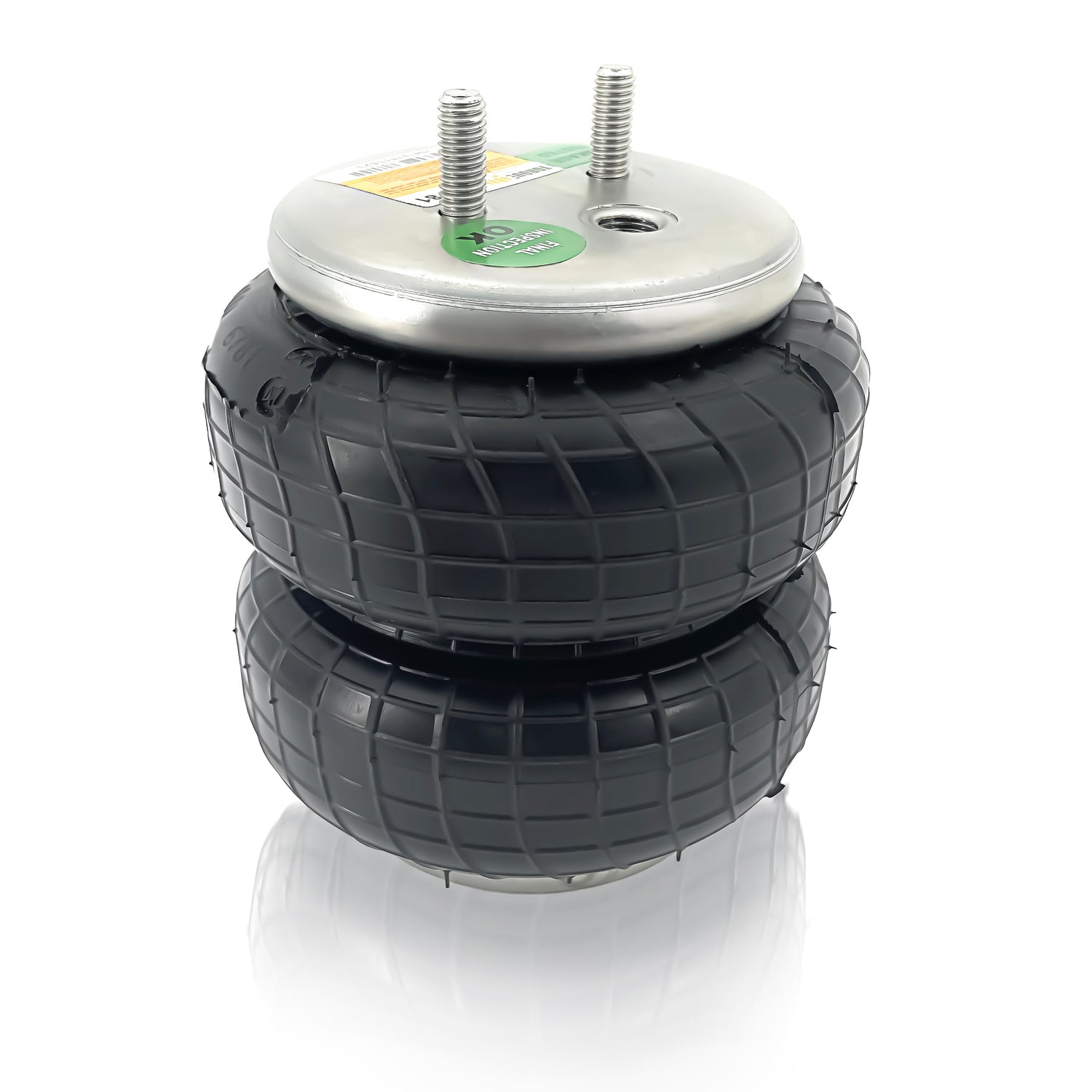

Specifications- Air Spring Bag for Air Helper Kit
| Ride Height | : 5.5"-6.5" |
| Max Diameter | : 6.6" |
| Compressed Height | : 2.80" |
| Full Extension | : 8.30" |
| Air Fitting | : 1/4" NPT Single Port |
| Top Mounting Studs | : 3/8"-16 x 3/4" (1.75" from left stud to right stud) |
| Bottom | : 3/8"-16 Blindnut (Mounting Hole) |
