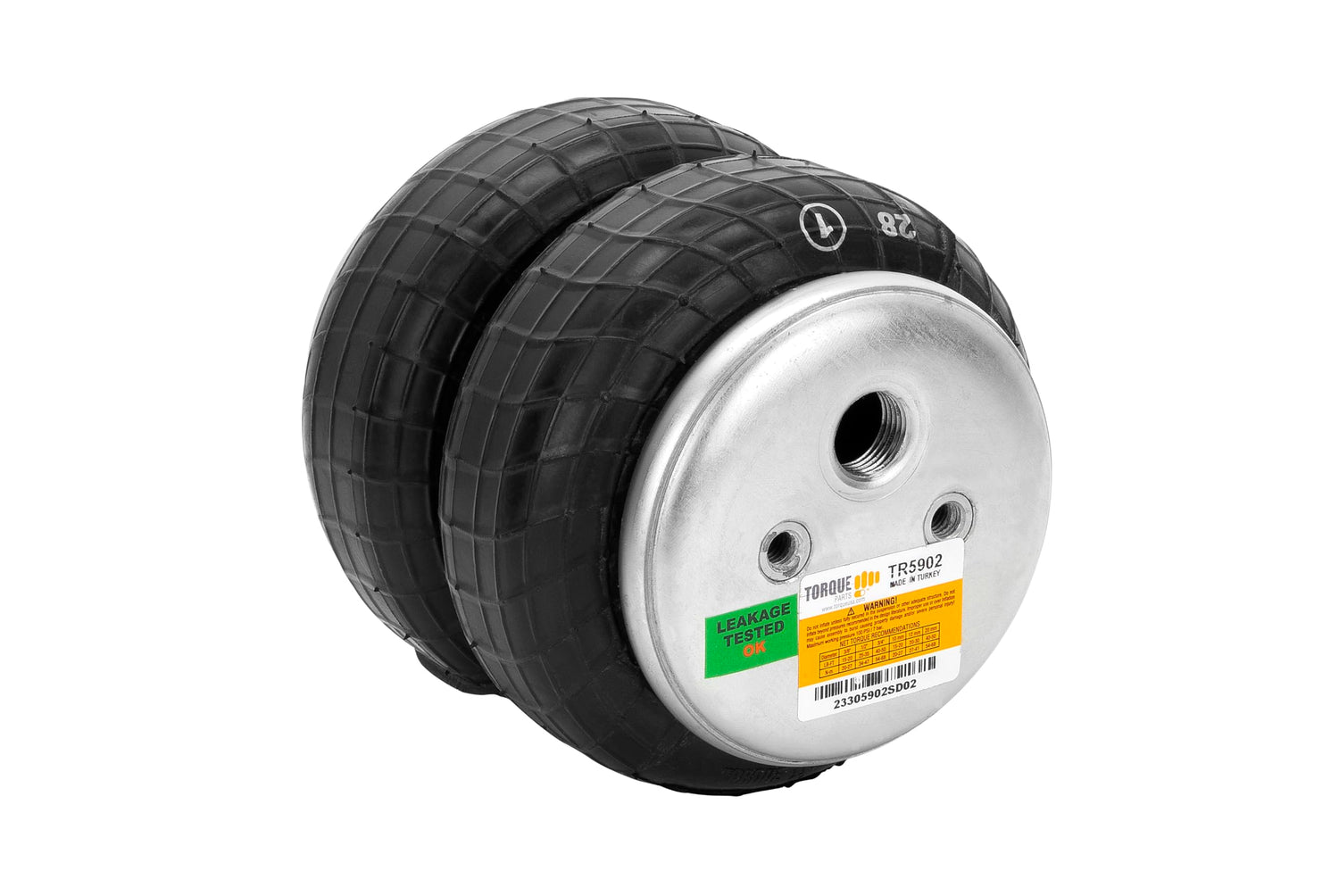

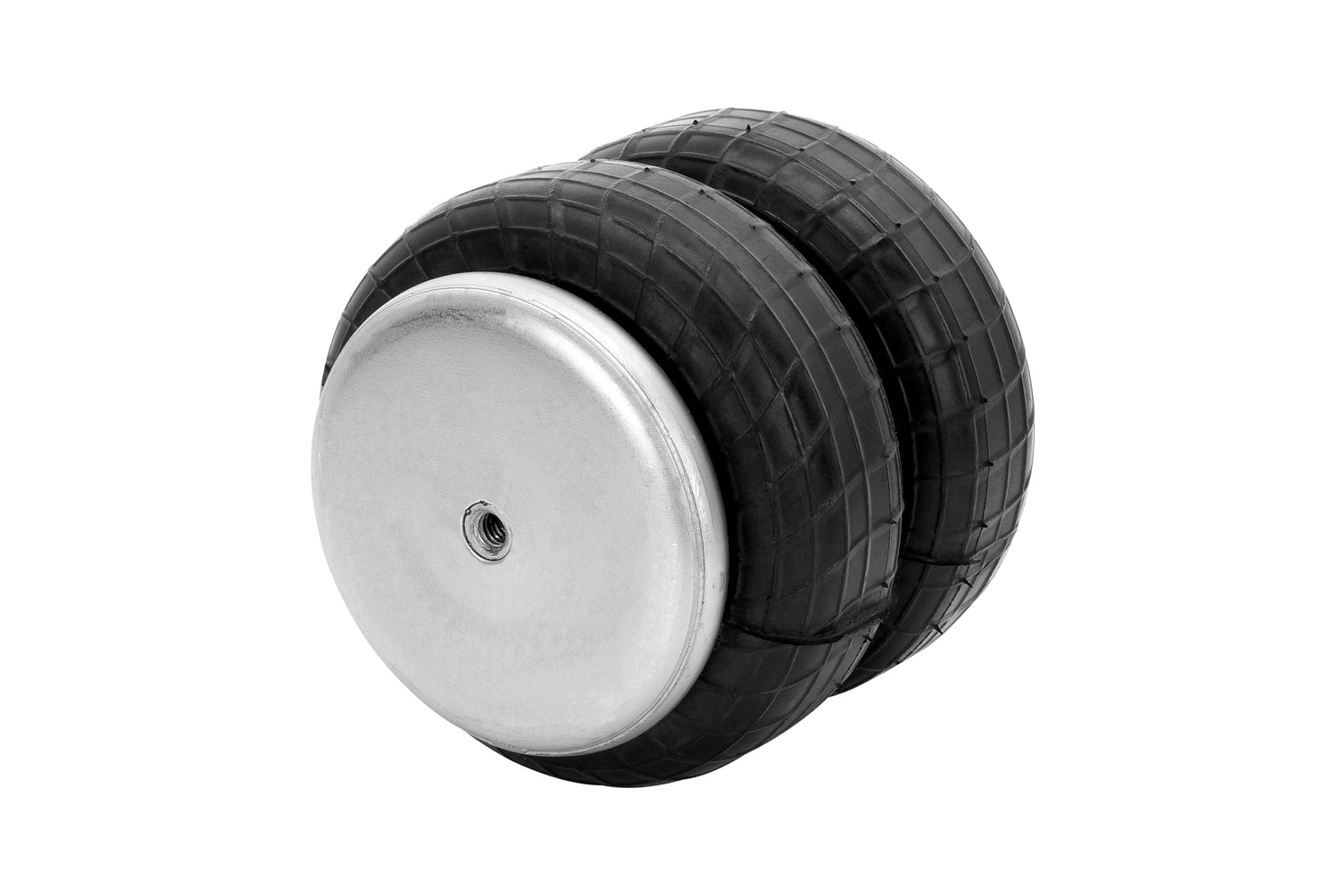

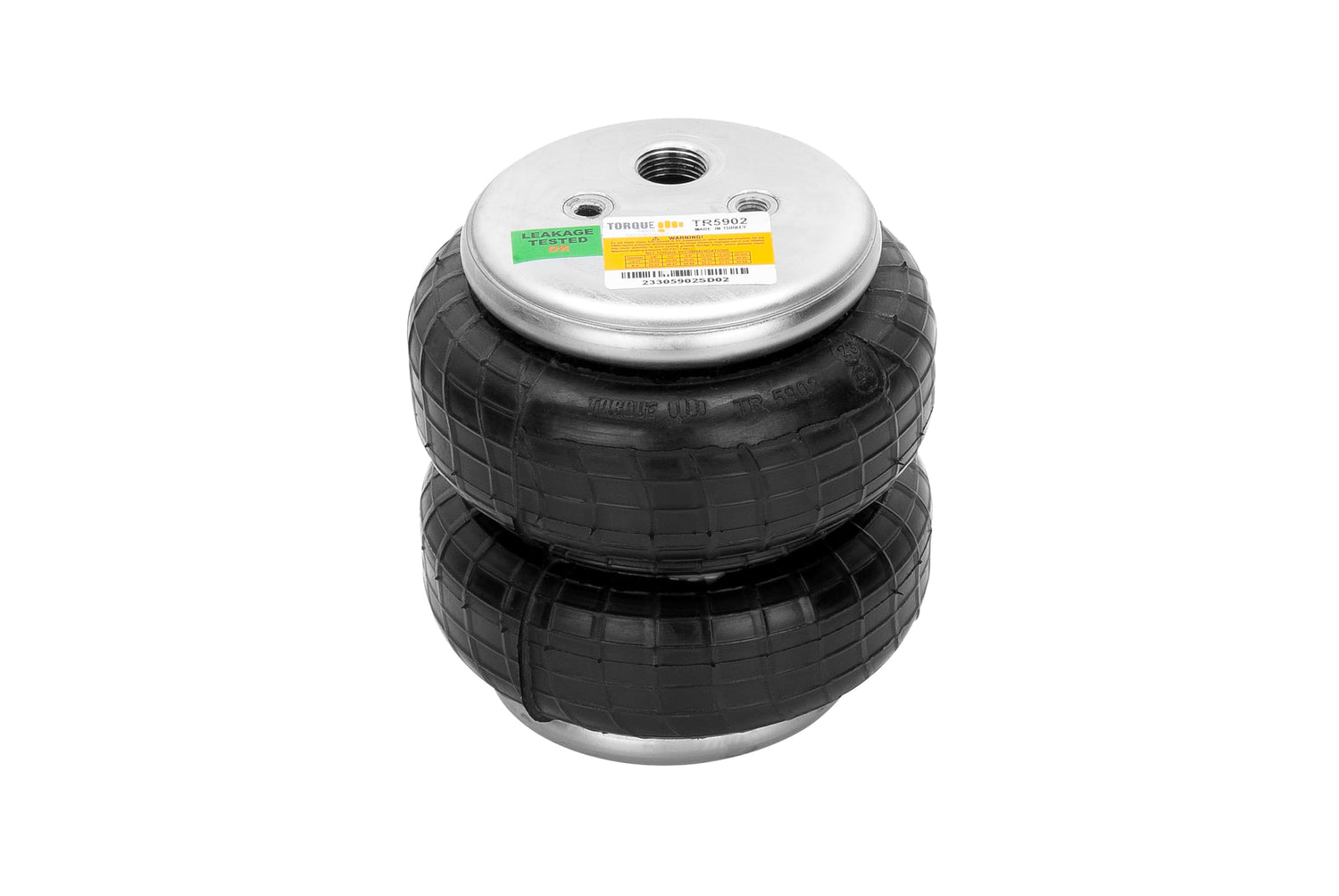

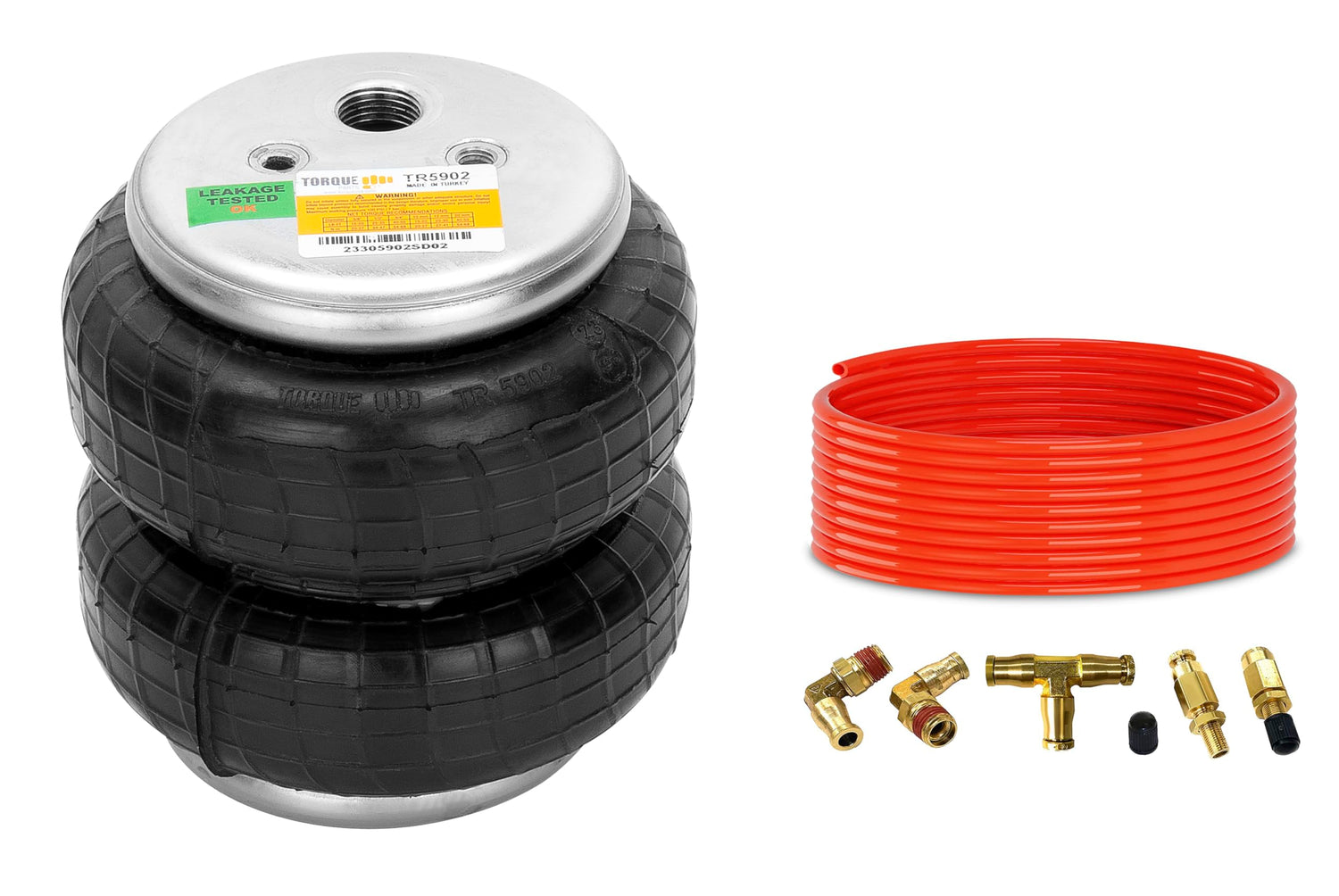

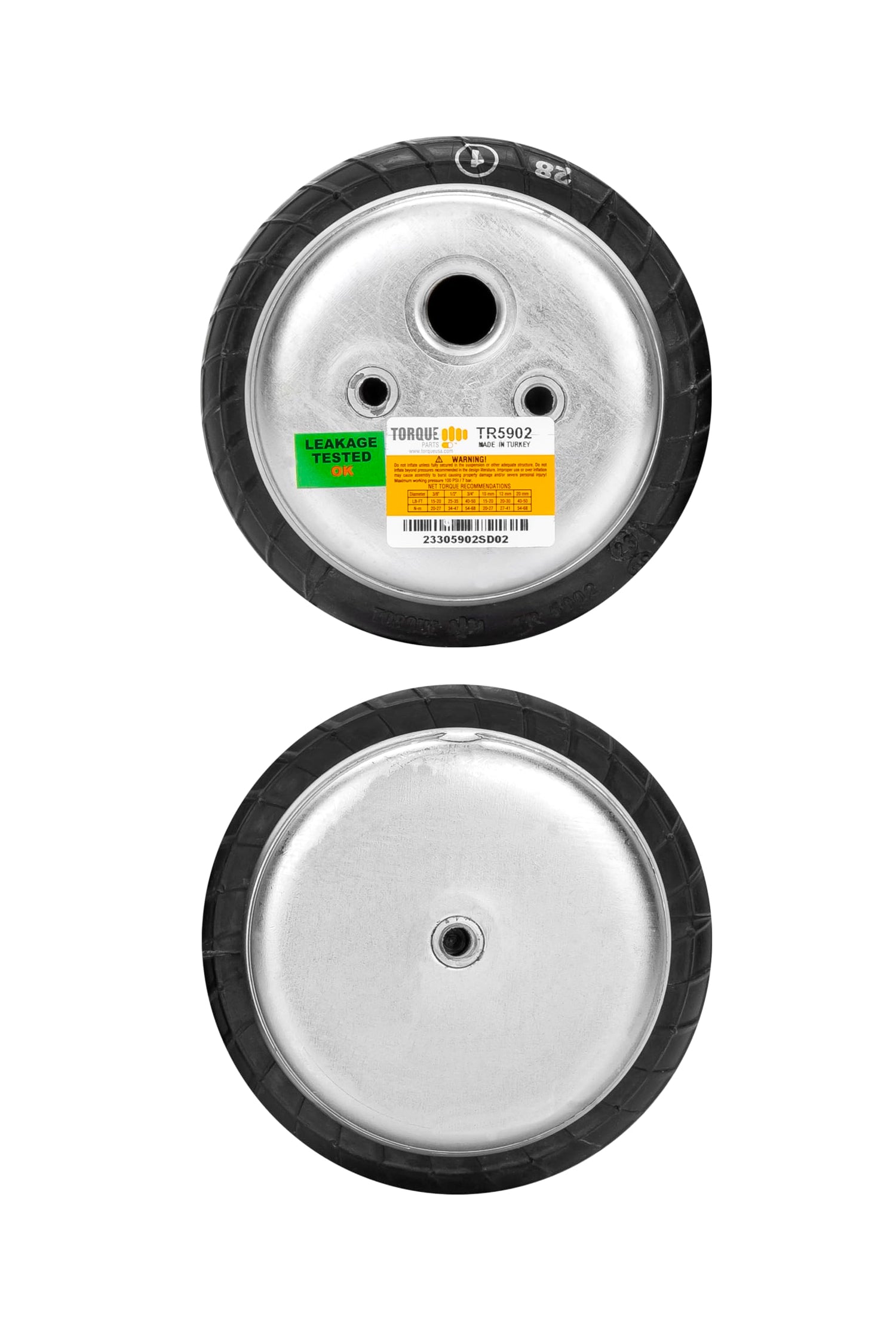

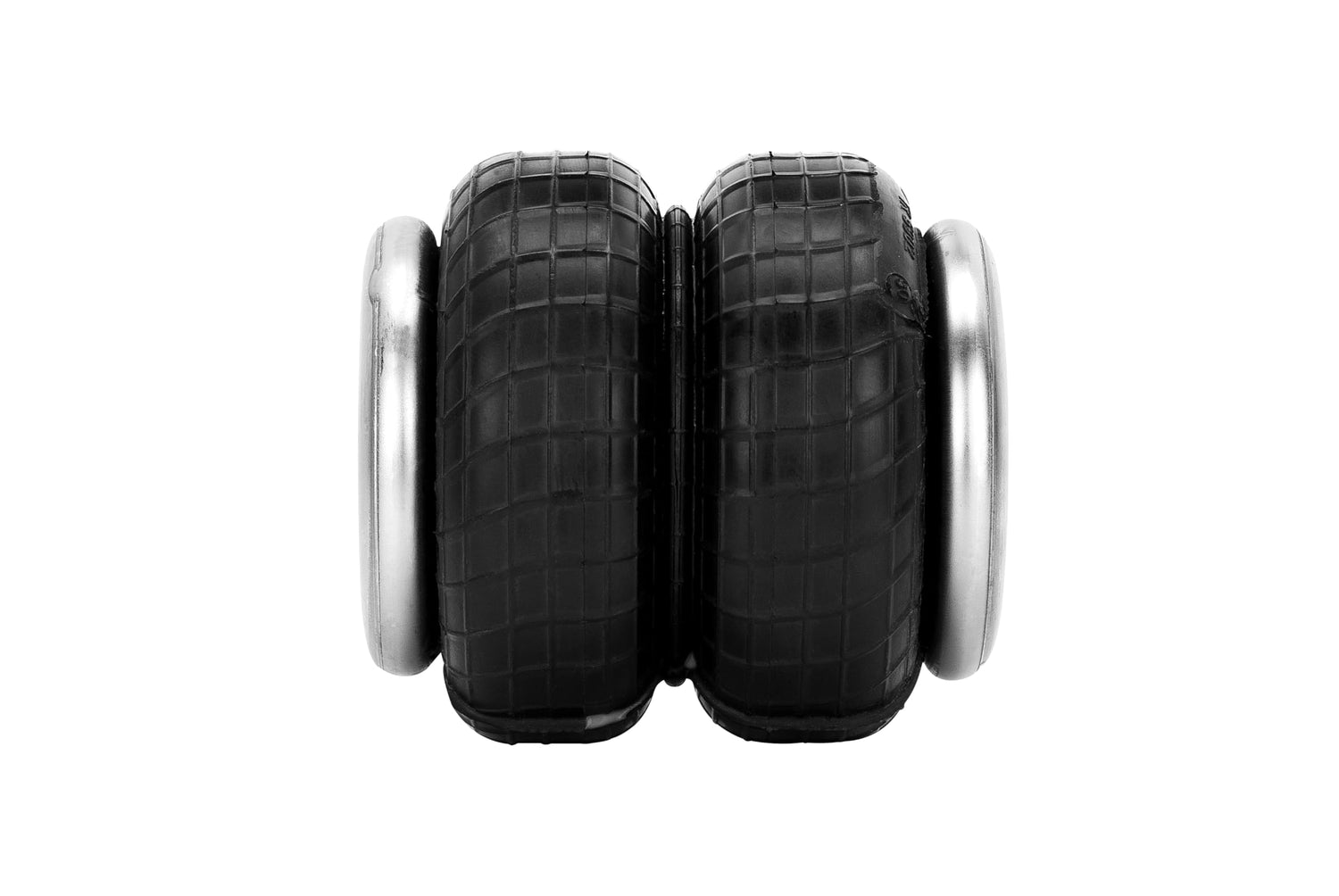

Air Spring Bag Replacement with Air Line Kit for Ford F150
Air Spring Bag Replacement with Air Line Kit for Ford F150
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Orders placed after the cut-off time will ship the next business day. Orders placed over the weekend will be shipped the following Monday. You’ll get a shipment notification email with a tracking number as soon as your package ships.
Disclaimer: During times of high order volume this timing may fluctuate, however, we always strive to ship out orders same day, prior to cut-off times. If extended delays occur for any reason, we will communicate as needed.
Shipping is free for all orders.
Air Spring Bag Replacement with Air Line Kit for Ford F150
Highlight title
Text to highlight a key feature of your product
Description
Description
Application
These air springs are universal and compatible with many pickup trucks, including Ford F-150, F-250, F-350; Chevrolet Silverado 1500, 2500, 3500; GMC Sierra 1500, 2500, 3500; Dodge Ram 1500, 2500, 3500; Toyota Tundra; and Toyota Tacoma.
Quality
Each air ride spring undergoes a 100% leak test after final assembly to help ensure reliable performance and long service life.
Specifications
- Maximum Extended Height: 8.3"
- Compressed Height: 2.8"
- Maximum Diameter: 6.5"
- Design Height: 5.5" – 7.1"
- Maximum Load at 100 PSI: 2,030 lbs
- Air Fitting Size: 1/2"
- Top Fastener: 3/8"-16
- Bottom Fastener: 3/8"-16
- Mounting Hole Center: 1.75" (Top / Center / Bottom)
Performance
This air spring is designed for use in vehicle suspension systems to provide adjustable support and help improve overall ride quality when properly installed.
Features
These brand-new aftermarket air springs can be inflated or
