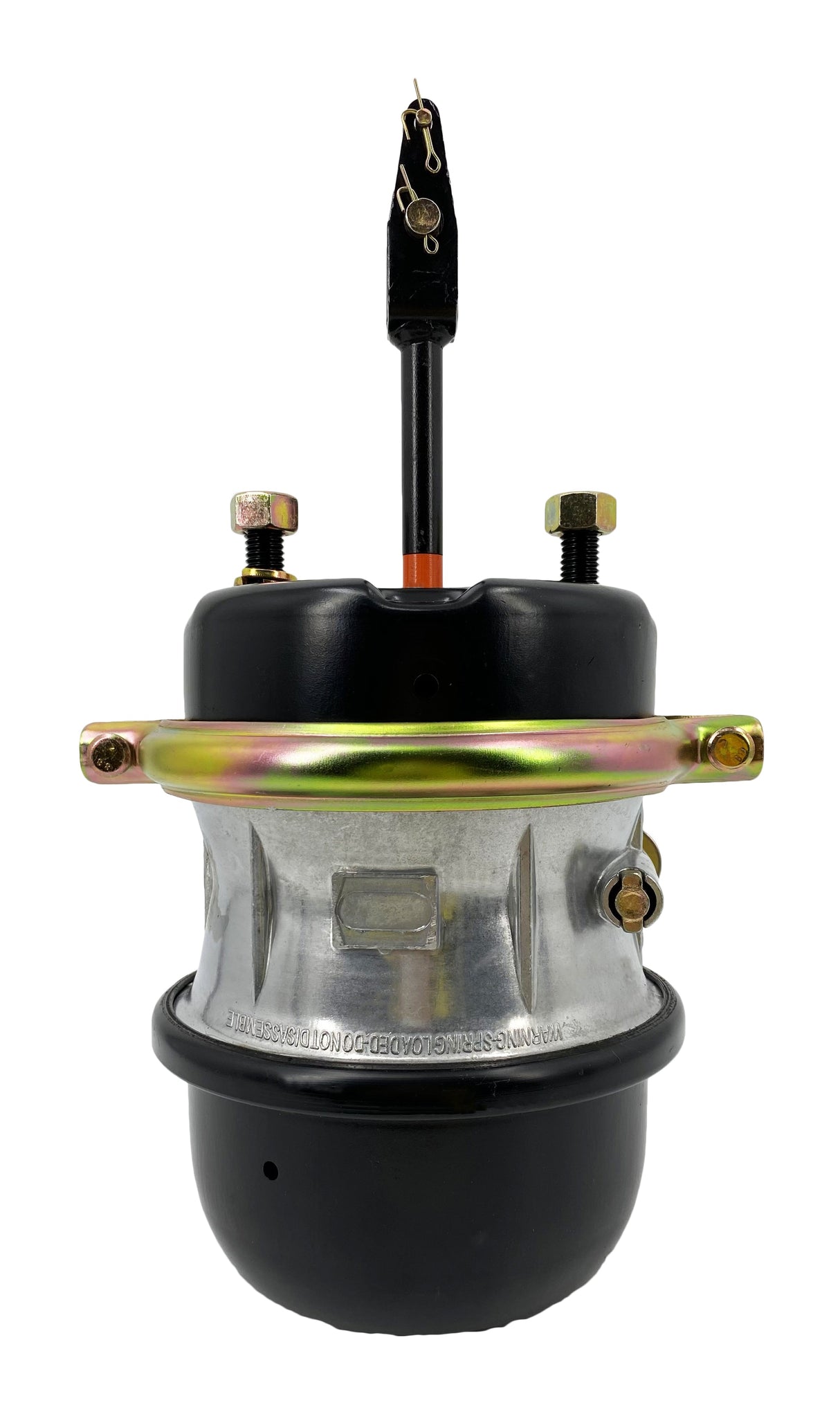

Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke | Replacement Haldex GC3030LCW
Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke | Replacement Haldex GC3030LCW
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Orders placed after the cut-off time will ship the next business day. Orders placed over the weekend will be shipped the following Monday. You’ll get a shipment notification email with a tracking number as soon as your package ships.
Disclaimer: During times of high order volume this timing may fluctuate, however, we always strive to ship out orders same day, prior to cut-off times. If extended delays occur for any reason, we will communicate as needed.
Shipping is free for all orders.
Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke | Re...
Highlight title
Text to highlight a key feature of your product
Description
Description

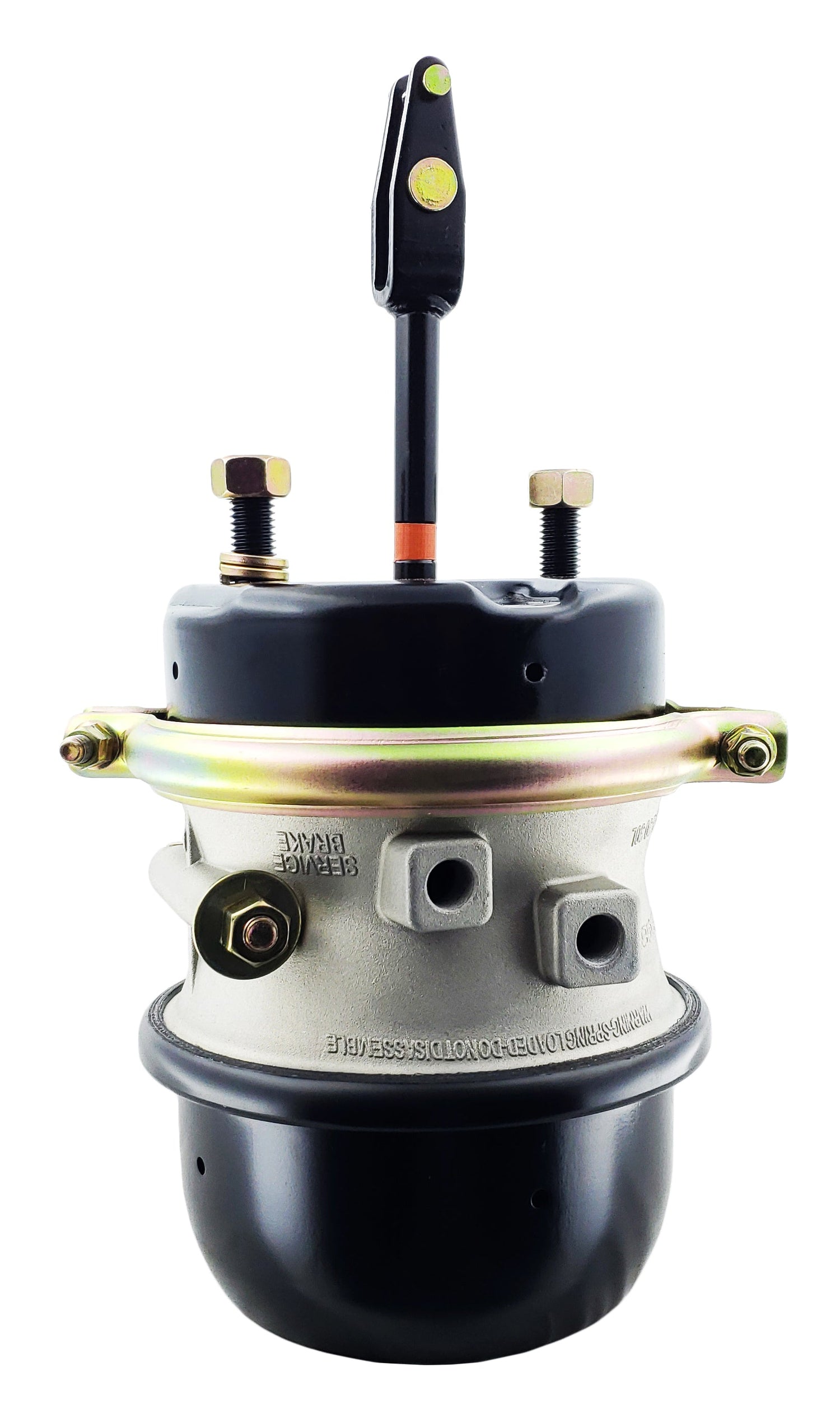

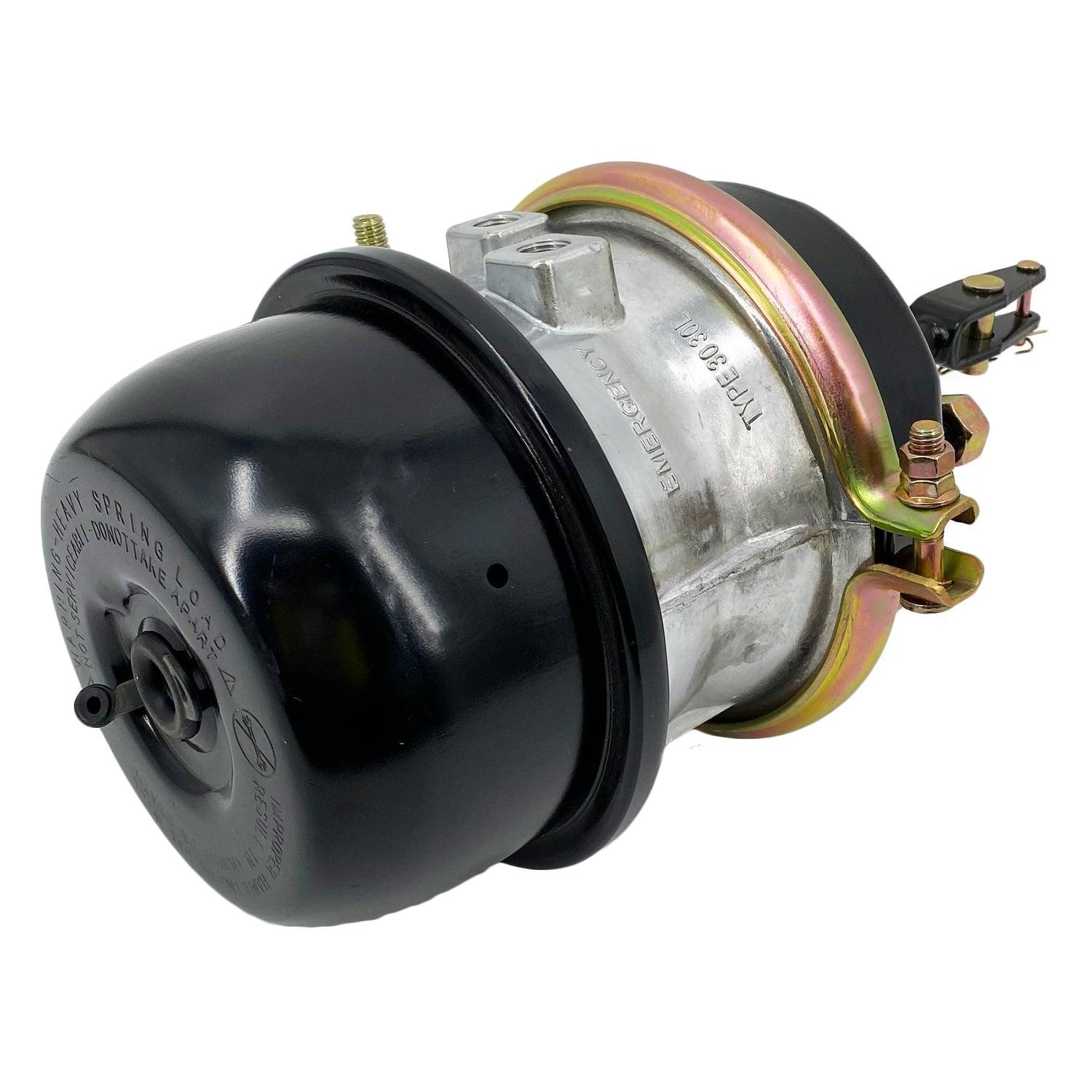

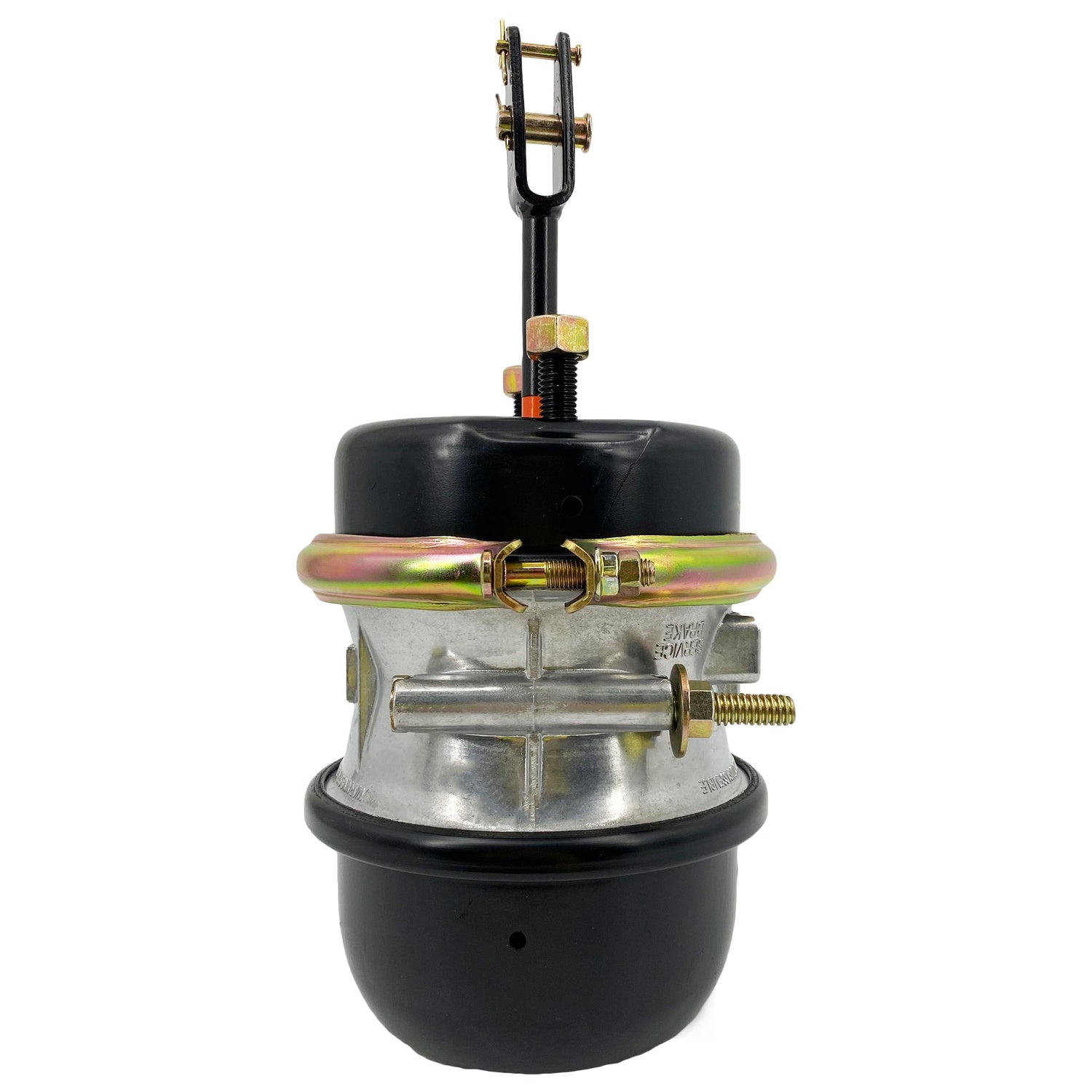

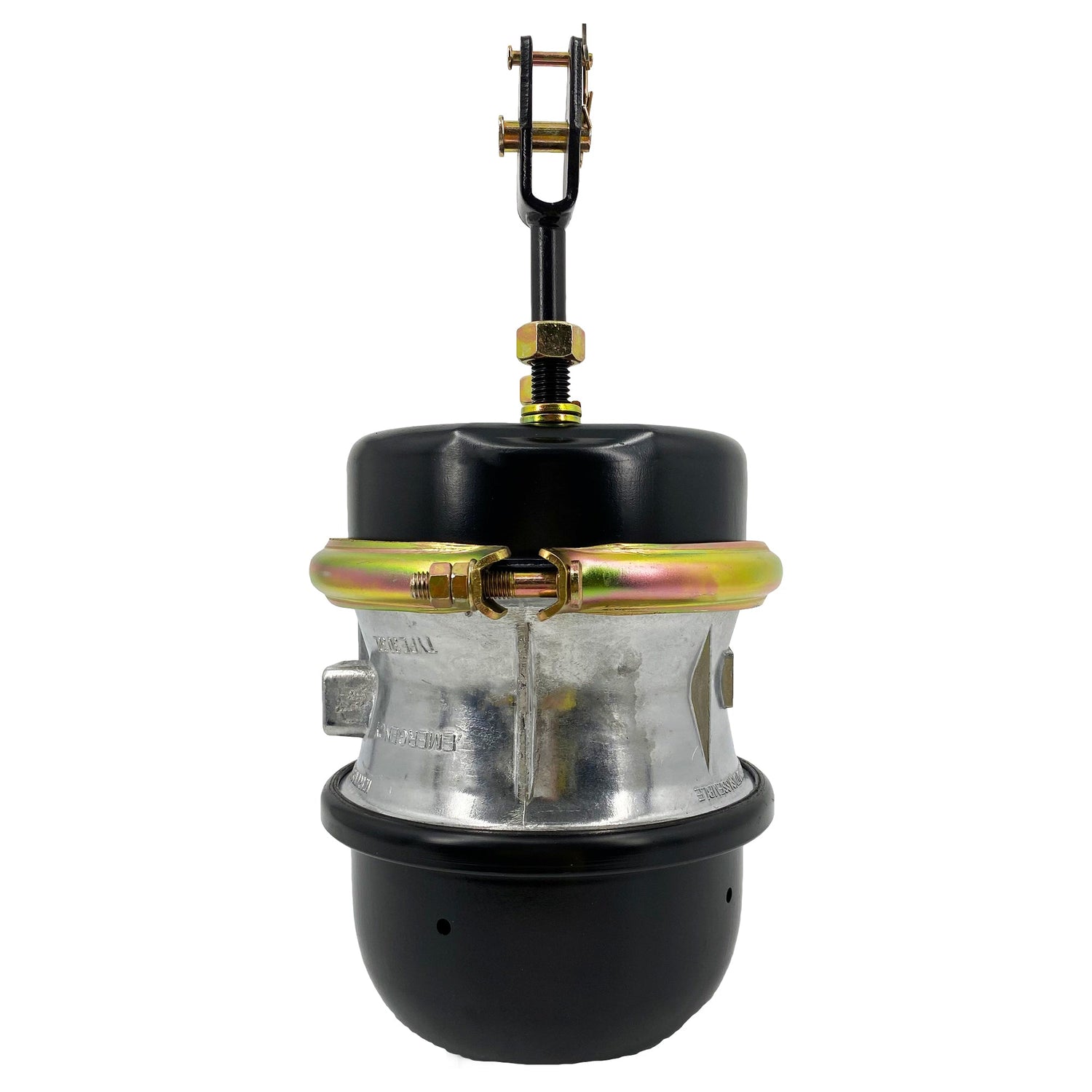

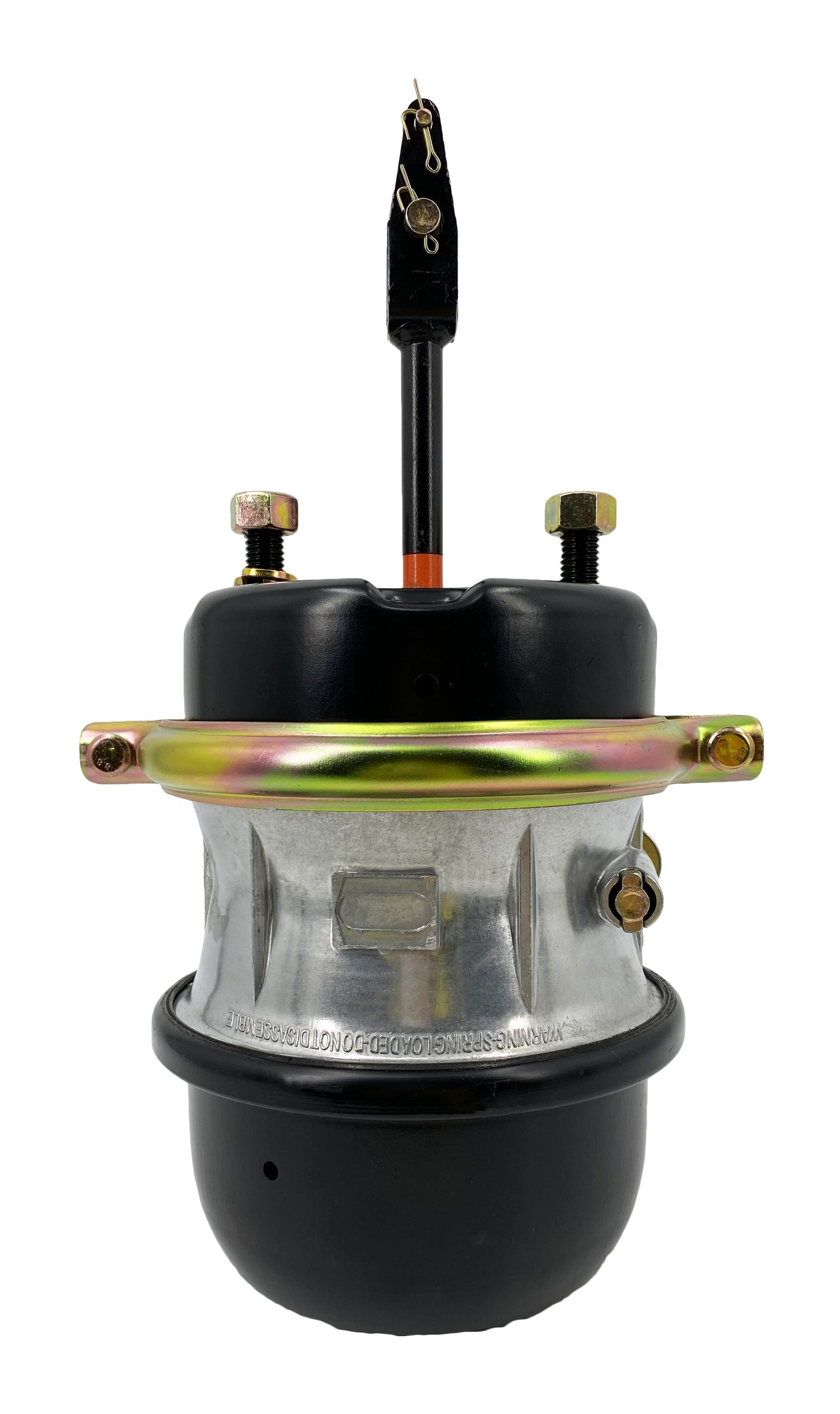

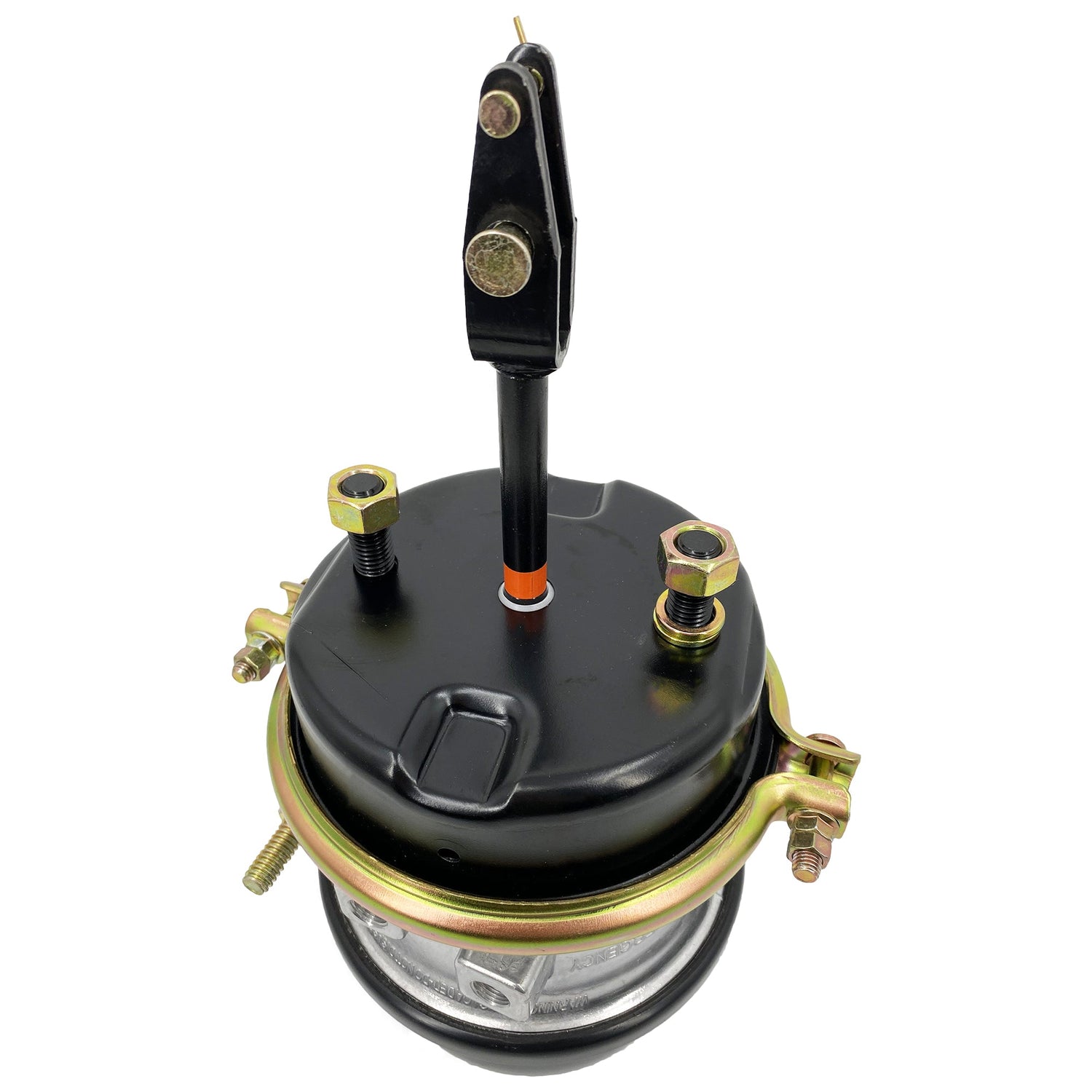

Built for powerful, reliable braking performance, this long-stroke 3030 air brake chamber is engineered to OEM standards for durability, safety, and consistent stopping power in demanding heavy-duty applications. 🚛💨
🔧 TYPE – Long Stroke Air Brake Chamber 3030 (30/30) with Welded Clevis
🔁 REPLACEMENT FOR –
Bendix NT3030ELSWC / NT3030ELS-WC
Haldex GC3030LCW / LC3030LCW
Freightliner HDX1373030215
Automann 179.SB3030SLW225
IHC 3541891C91
Others: BTS-3030LS-WCR, GTA-3030LS-WCR
📏 SPECS –
• Actuator Size: 3030
• Stroke Type: Long Stroke (3")
• Length (Mounting Bracket → Spring Housing): 9-7/8"
• Piggyback Length: 7-3/8"
• Rolled Spring Housing Flange: 8-5/16"
• Service Clampband: 10-3/16"
• Pushrod Length: 1"
• Clevis Pin Centerline Distance: 2-1/4"
• Weight: 21.9 lbs
⚙️ FEATURES –
• Welded Clevis with long-stroke 3030 square bosses
• Superior power spring technology for consistent braking force
• Advanced powder-coat finish to resist corrosion and fatigue
• Double O-ring center seal for positive sealing and extended service life
• High-quality diaphragm resistant to heat and cold
• Self-piloting dust shield for added protection
• Designed to fit all drum brake applications
🛡️ WARRANTY –
Covered by a 1-Year Unlimited Mileage Warranty, ensuring quality assurance and hassle-free replacement if needed.
