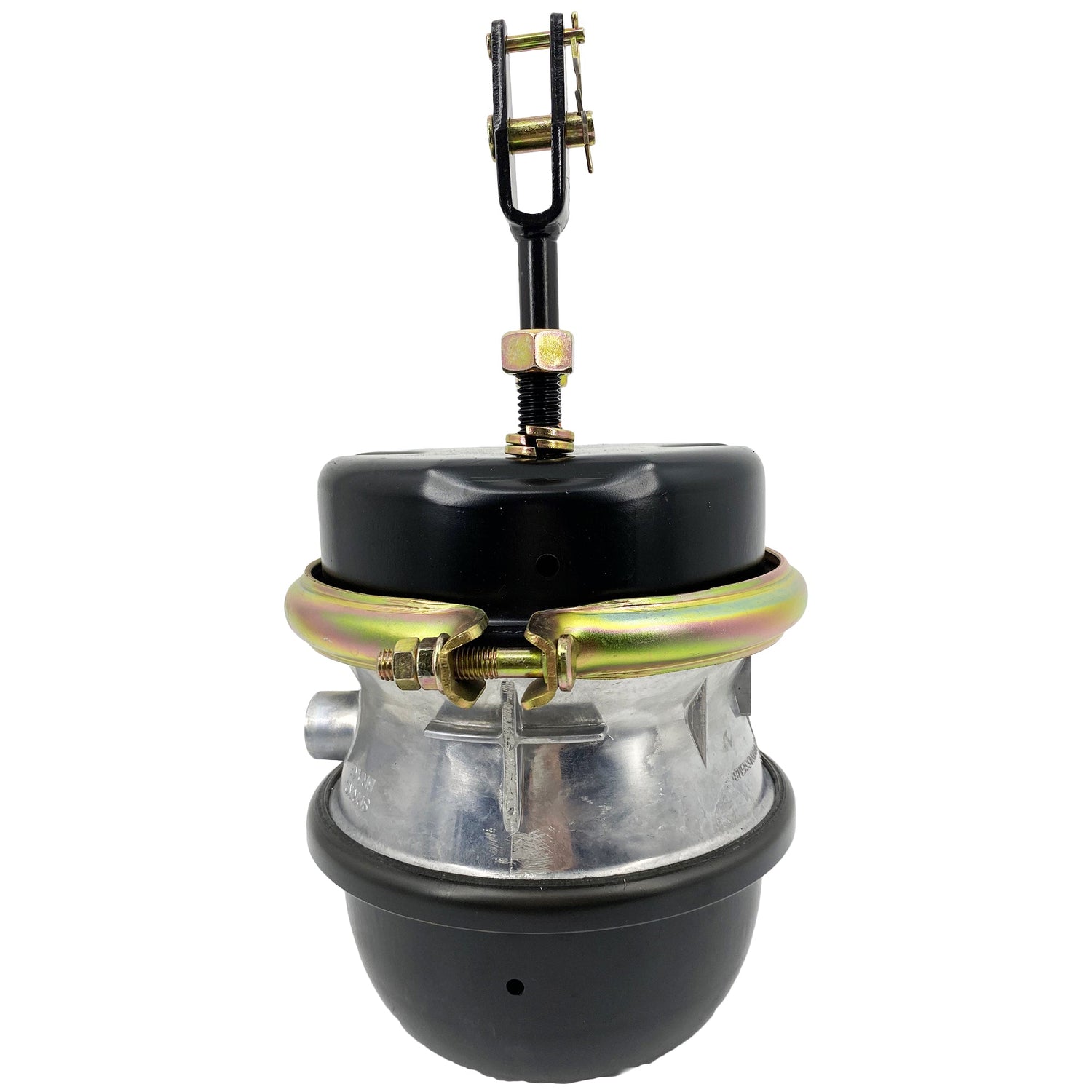

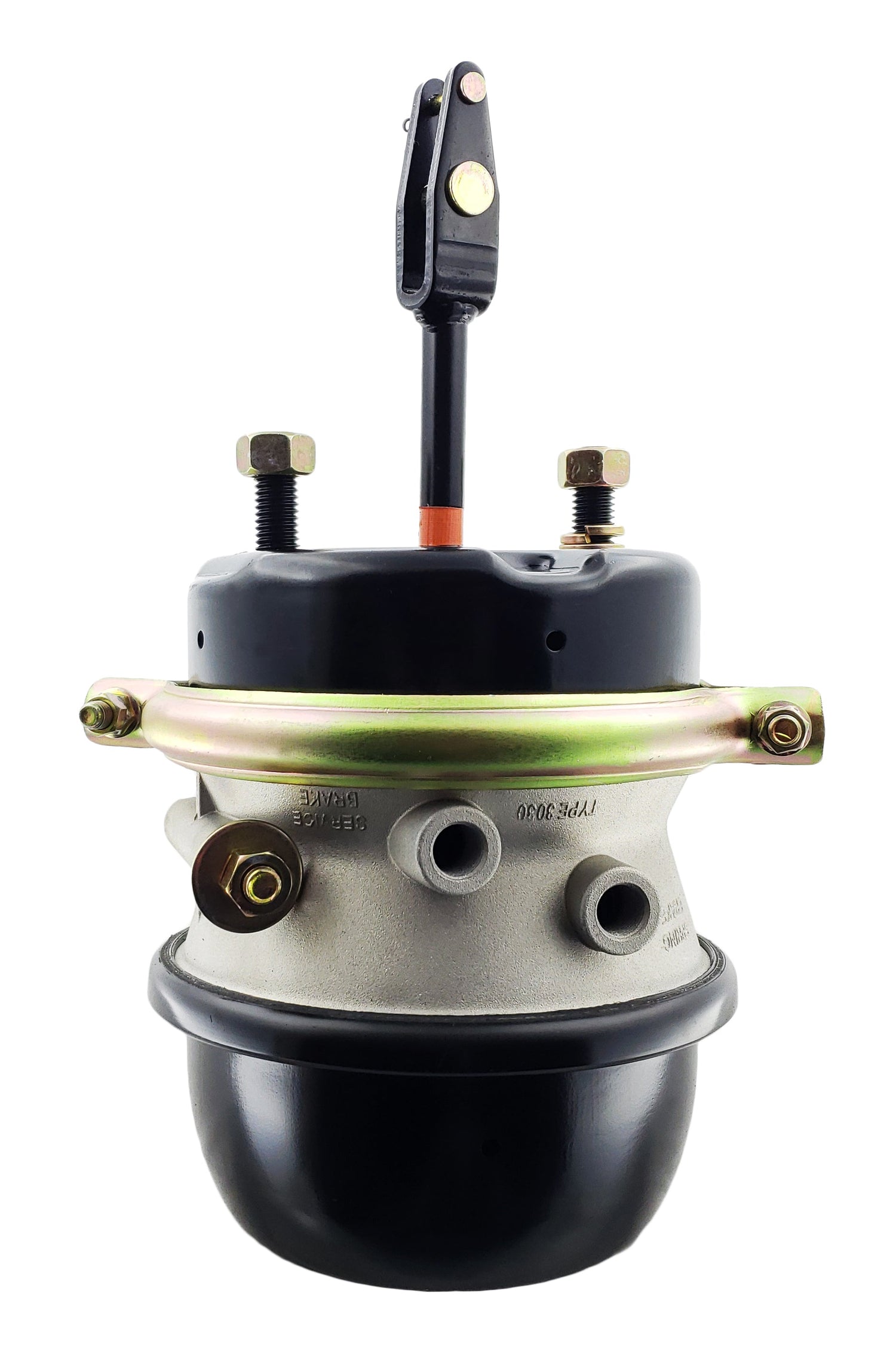

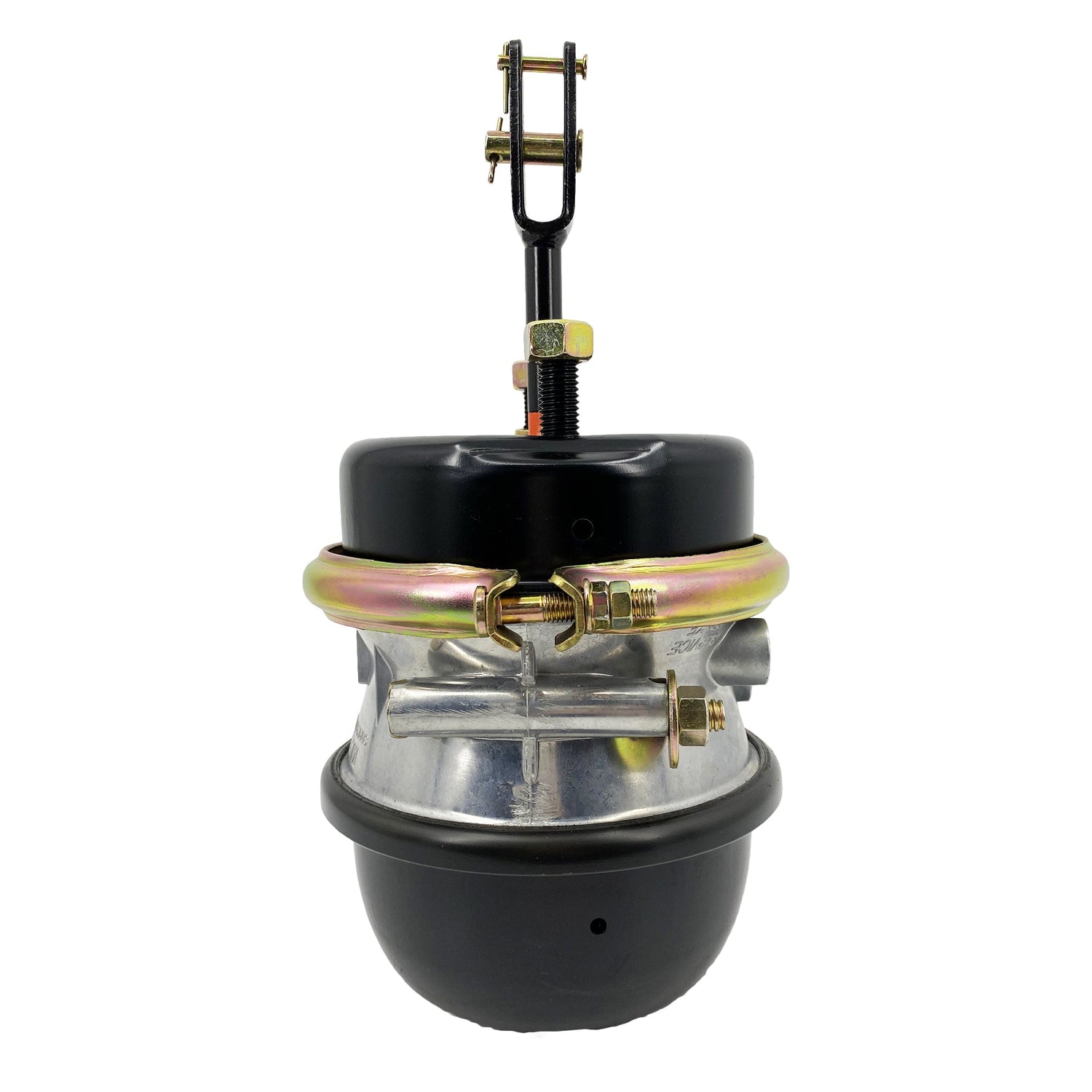

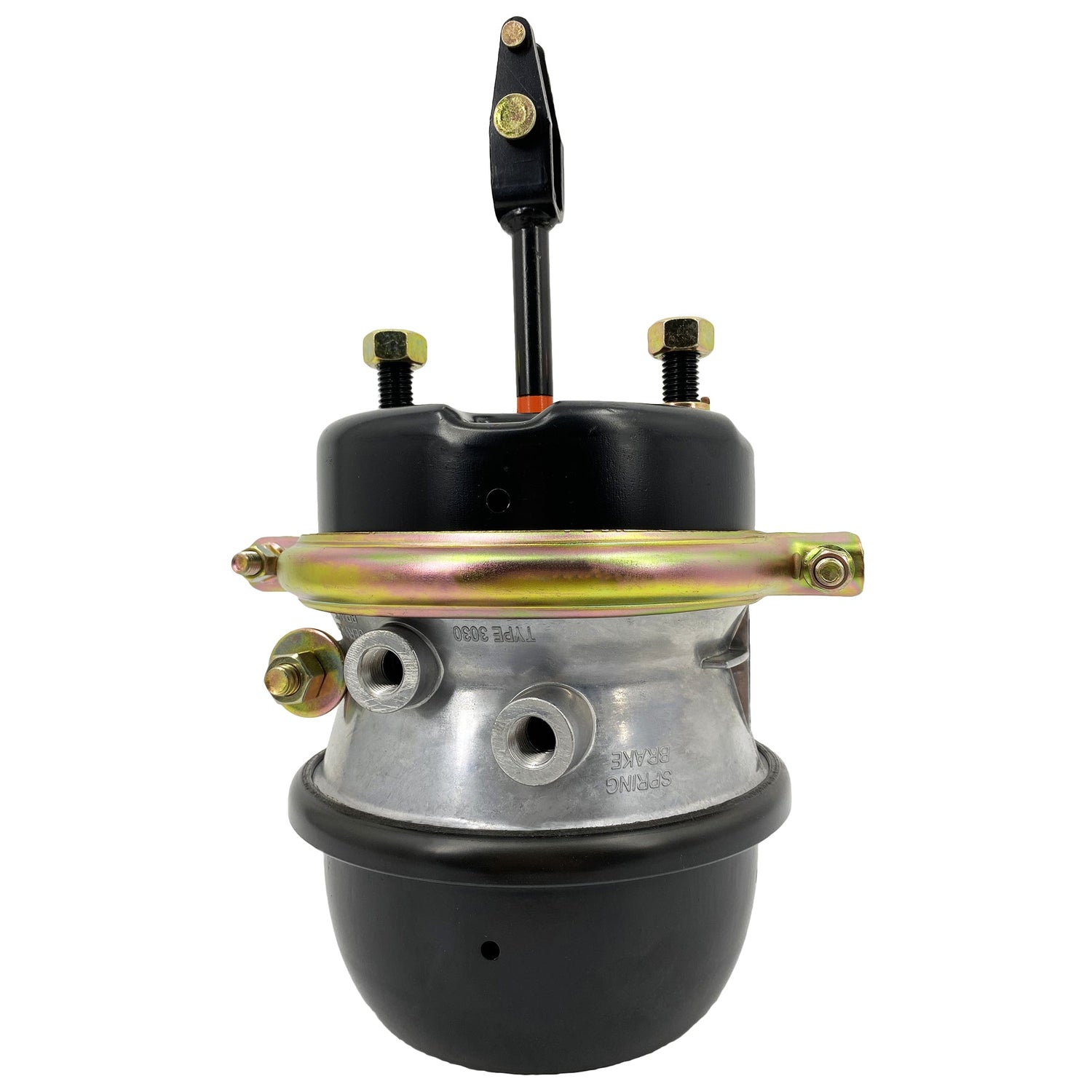

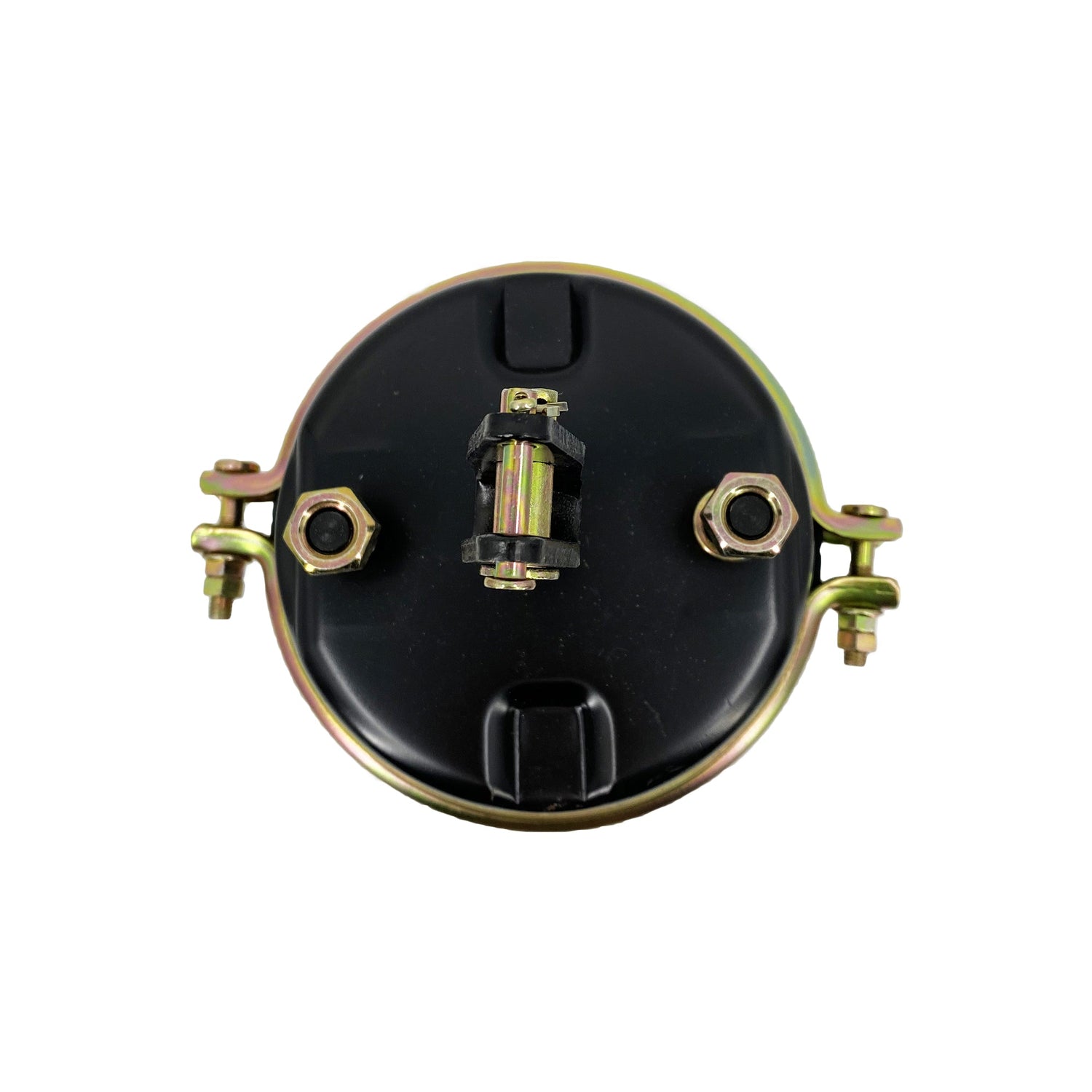

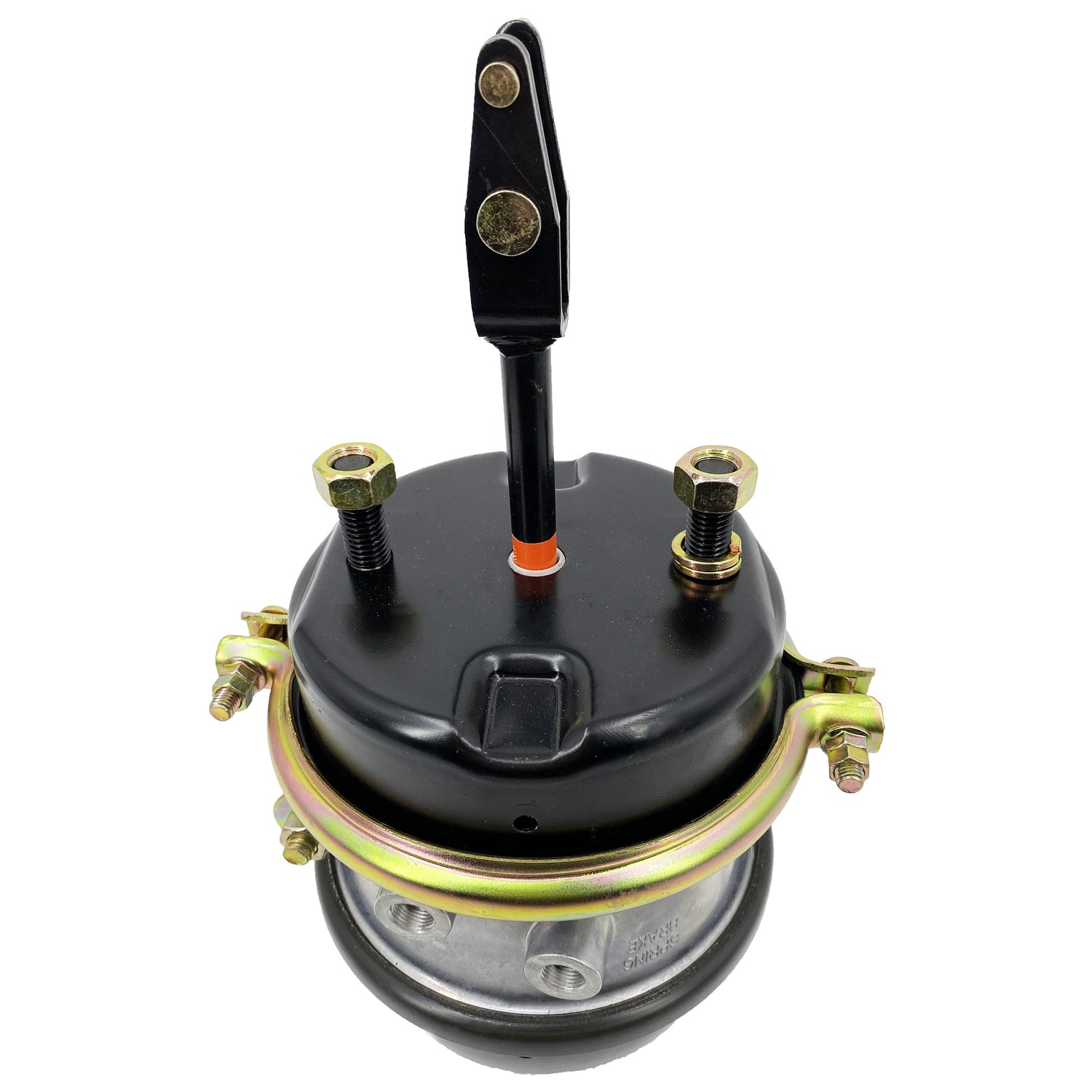

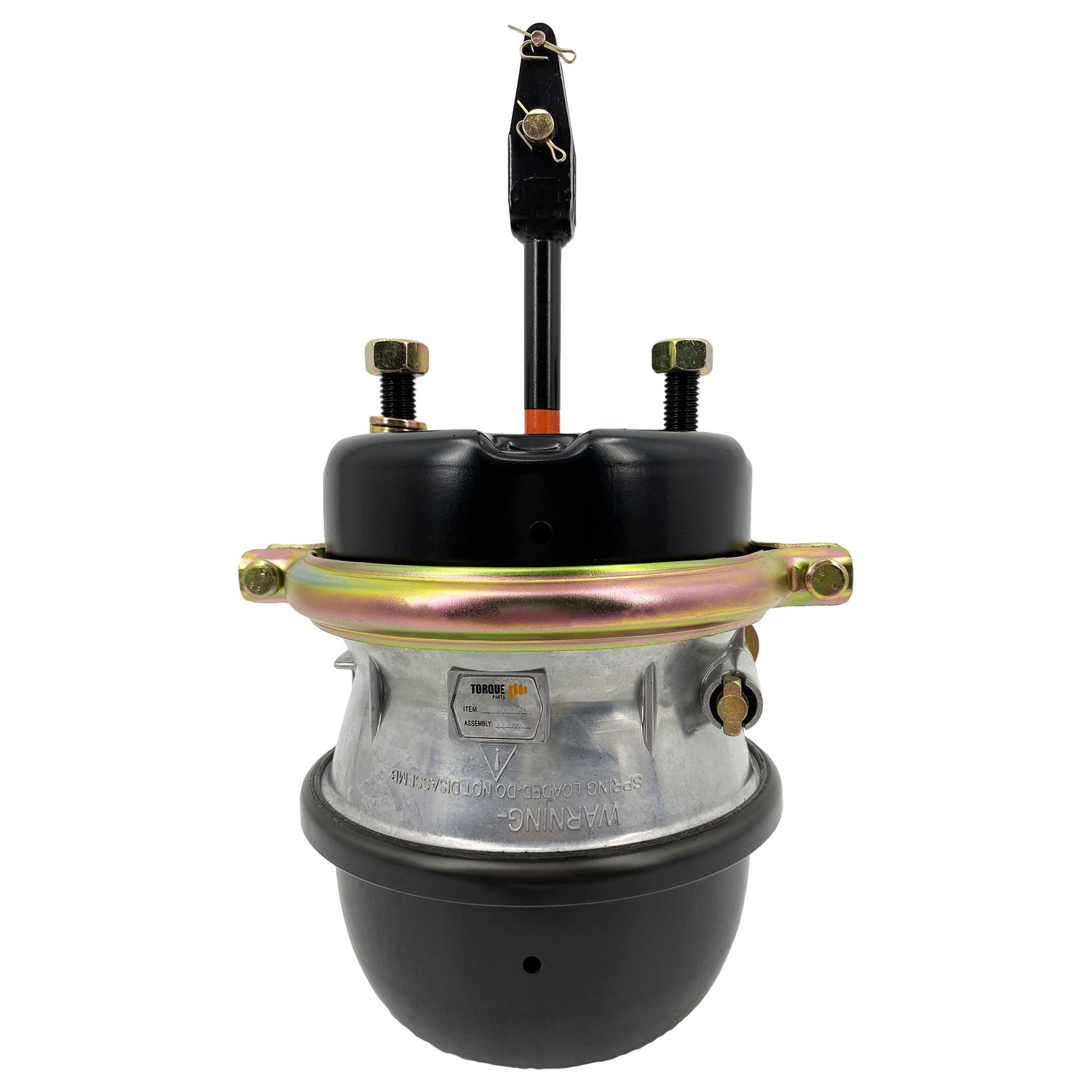

Type 30/30 Air Brake Chamber Welded Clevis 2.5" Stroke
Highlight title
Text to highlight a key feature of your product
Description
Description
TYPE
Air brake chamber Type 3030 (30/30) with welded clevis, engineered for reliable service and spring brake operation in heavy-duty applications.
REPLACEMENT FOR
Bendix: K129605, K067114
Haldex: GC3030CW, GC3030S4CW
Other: BTS-3030-WCR, GTA-3030-WCR
Automann: 179.SB3030SW1100
SPECIFICATIONS
Actuator Type Size: 3030
Stroke Type: Standard
Available Stroke: 2-1/2"
Length (Mounting Bracket to End of Spring Housing): 9"
Piggyback Length: 6-13/16"
Rolled Spring Housing Flange Dimension: 8-5/16"
Service Clampband Dimension: 10-3/16"
Pushrod Length (from face of Service Housing): 1"
Distance to Clevis Pin Centerline: 2-1/4"
Weight: 21.3 lbs
FEATURES
Superior power spring technology with advanced powder-coated finish for resistance to corrosion and fatigue. Double O-ring center seal provides positive sealing with plastic bearings for extended service life. World-class diaphragm made from high-quality rubber compound resistant to heat and cold. Rugged 9-gauge steel service housing with powder coating and a self-piloting dust shield for added protection.
WARRANTY
Covered by a 1-year unlimited mile warranty, providing quality assurance and replacement coverage if an issue occurs within the warranty period.
