Piggyback Air Brake Chamber Kit Type 3030 (30/30) | Replacement Haldex GP3030
Piggyback Air Brake Chamber Kit Type 3030 (30/30) | Replacement Haldex GP3030
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Orders placed after the cut-off time will ship the next business day. Orders placed over the weekend will be shipped the following Monday. You’ll get a shipment notification email with a tracking number as soon as your package ships.
Disclaimer: During times of high order volume this timing may fluctuate, however, we always strive to ship out orders same day, prior to cut-off times. If extended delays occur for any reason, we will communicate as needed.
Shipping is free for all orders.
Highlight title
Text to highlight a key feature of your product
Description
Description
TYPE

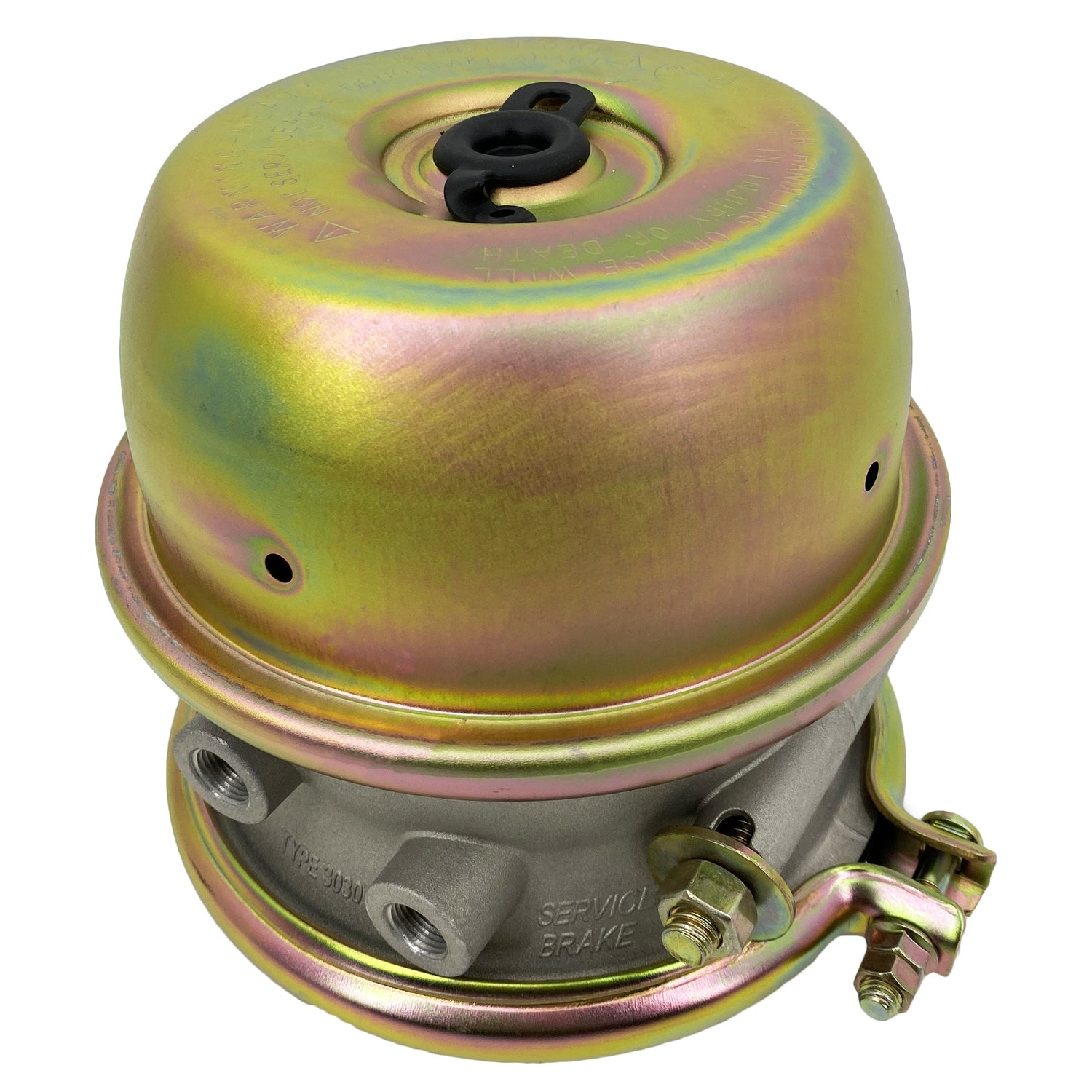

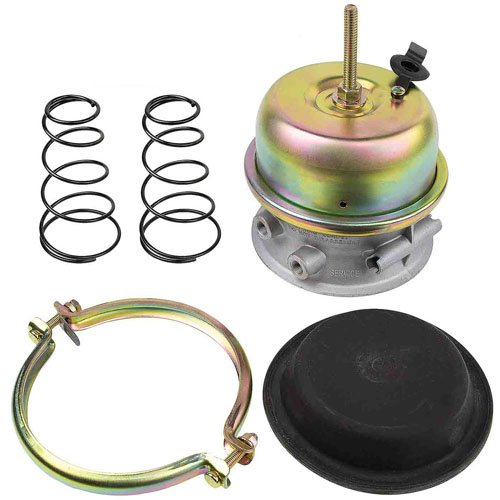

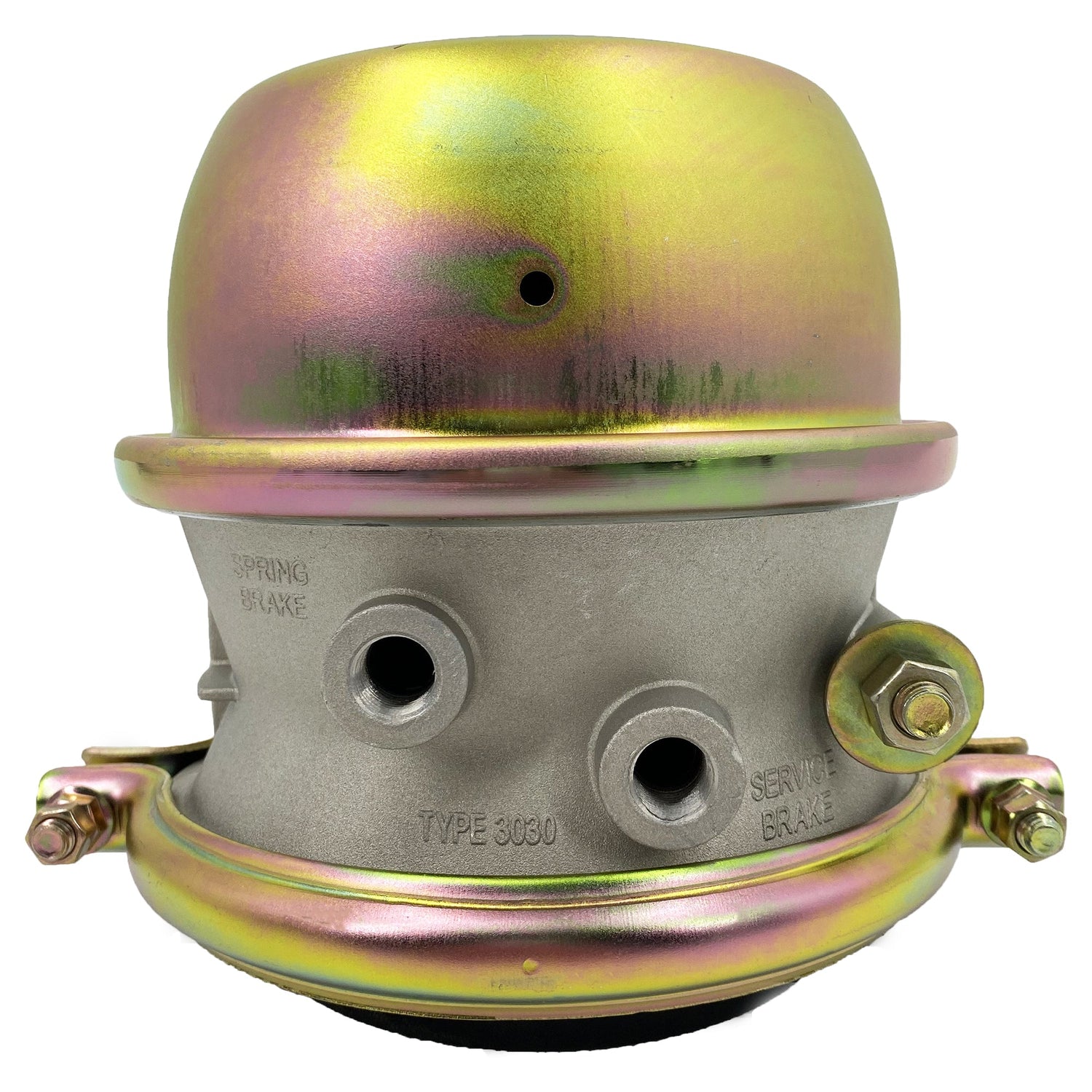

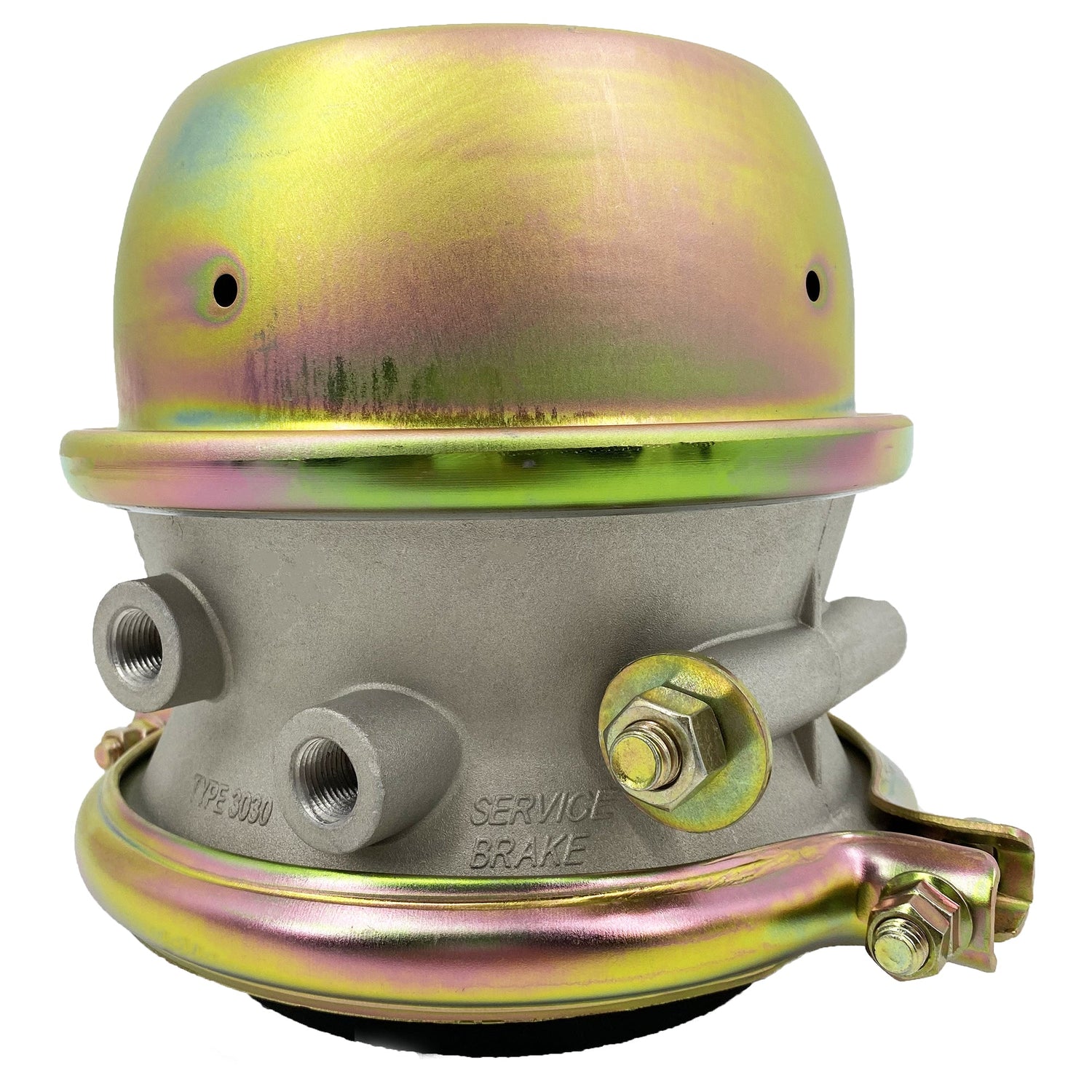

Piggyback air brake chamber kit Type 3030 (30/30) designed for spring brake applications, delivering reliable braking performance and simplified servicing.
REPLACEMENT
Replaces Haldex GP3030, MA15435, MA15444, and Automann 179.PB3030S.
SPECIFICATIONS
Actuator type size: 3030. Stroke type: standard. Available stroke: 2-1/2" (64 mm). Length of piggyback: 6-13/16" (172 mm). Dimension at rolled spring housing flange: 8-5/16" (211 mm). Approximate weight: 12.1 lbs (5.5 kg).
FEATURES
Utilizes superior power spring technology and an advanced powder coating process to resist corrosion and fatigue. Double O-ring center seal with two O-rings for positive sealing and plastic bearings for extended service life.
WARRANTY
Backed by a 1-Year Unlimited Mile Warranty, ensuring product quality and providing replacement support if an issue occurs within the warranty period.
