Air Brake Chamber Service Type 30 (T30) | Replacement Haldex SC30
Highlight title
Text to highlight a key feature of your product
Description
Description
TYPE

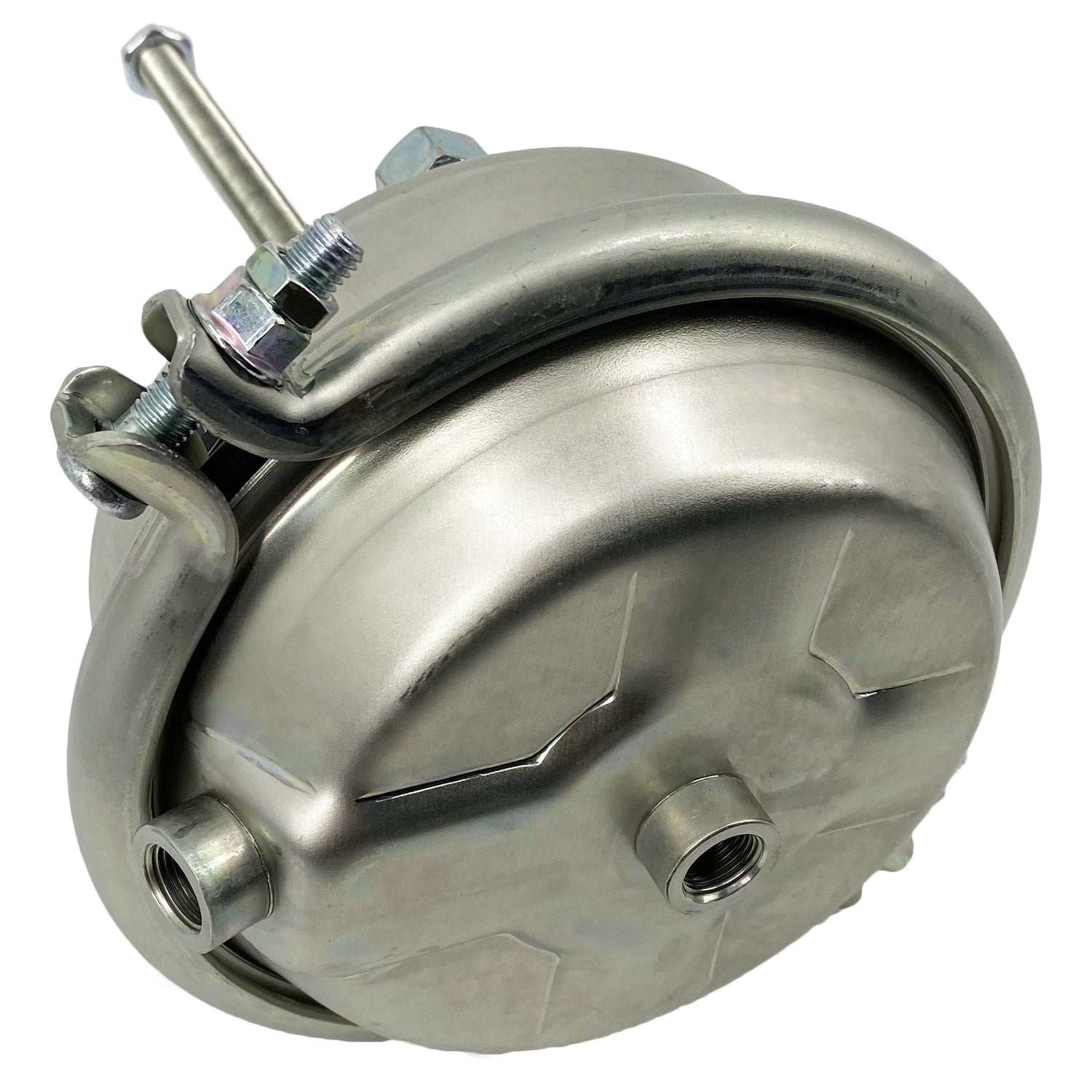

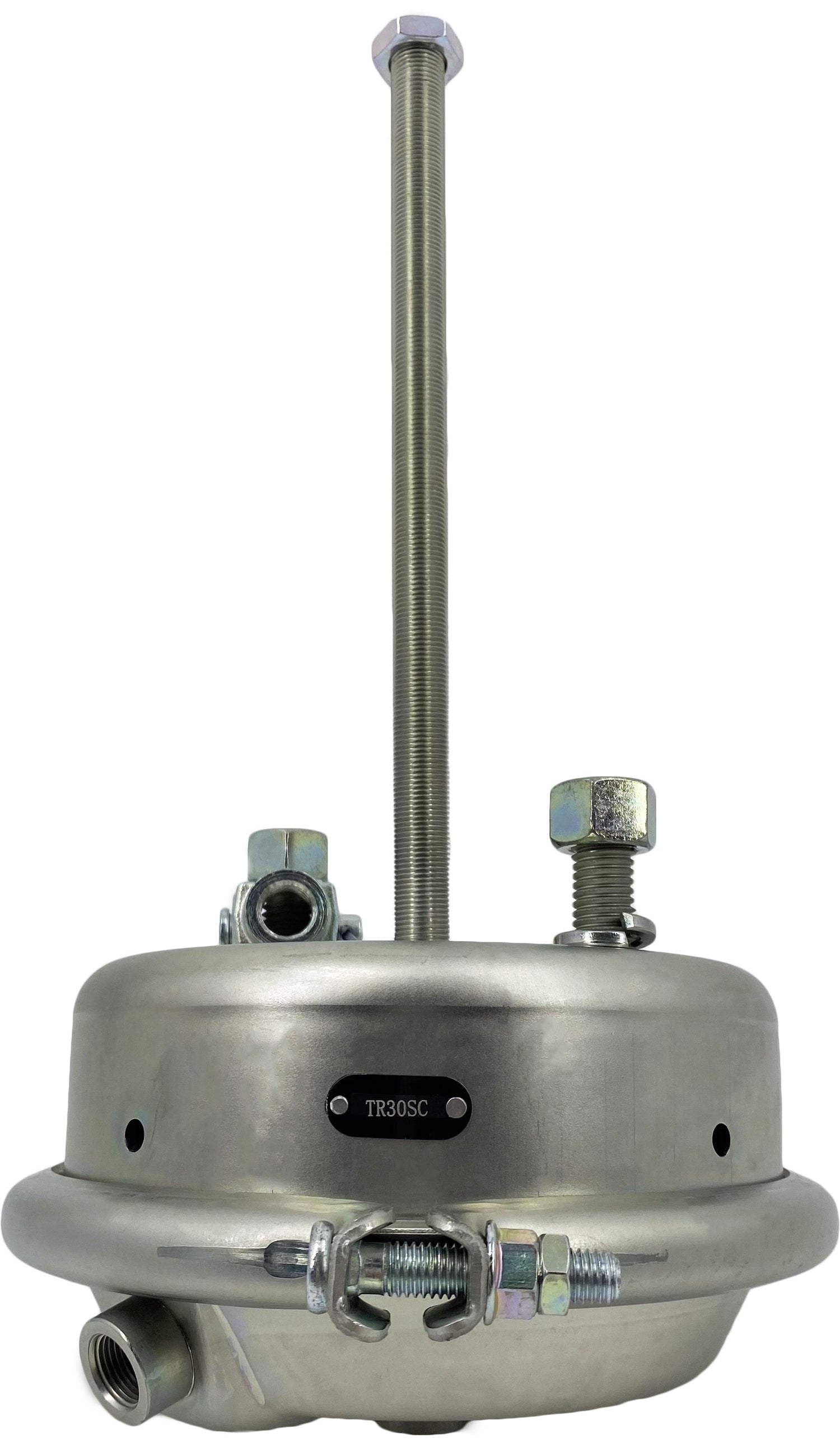

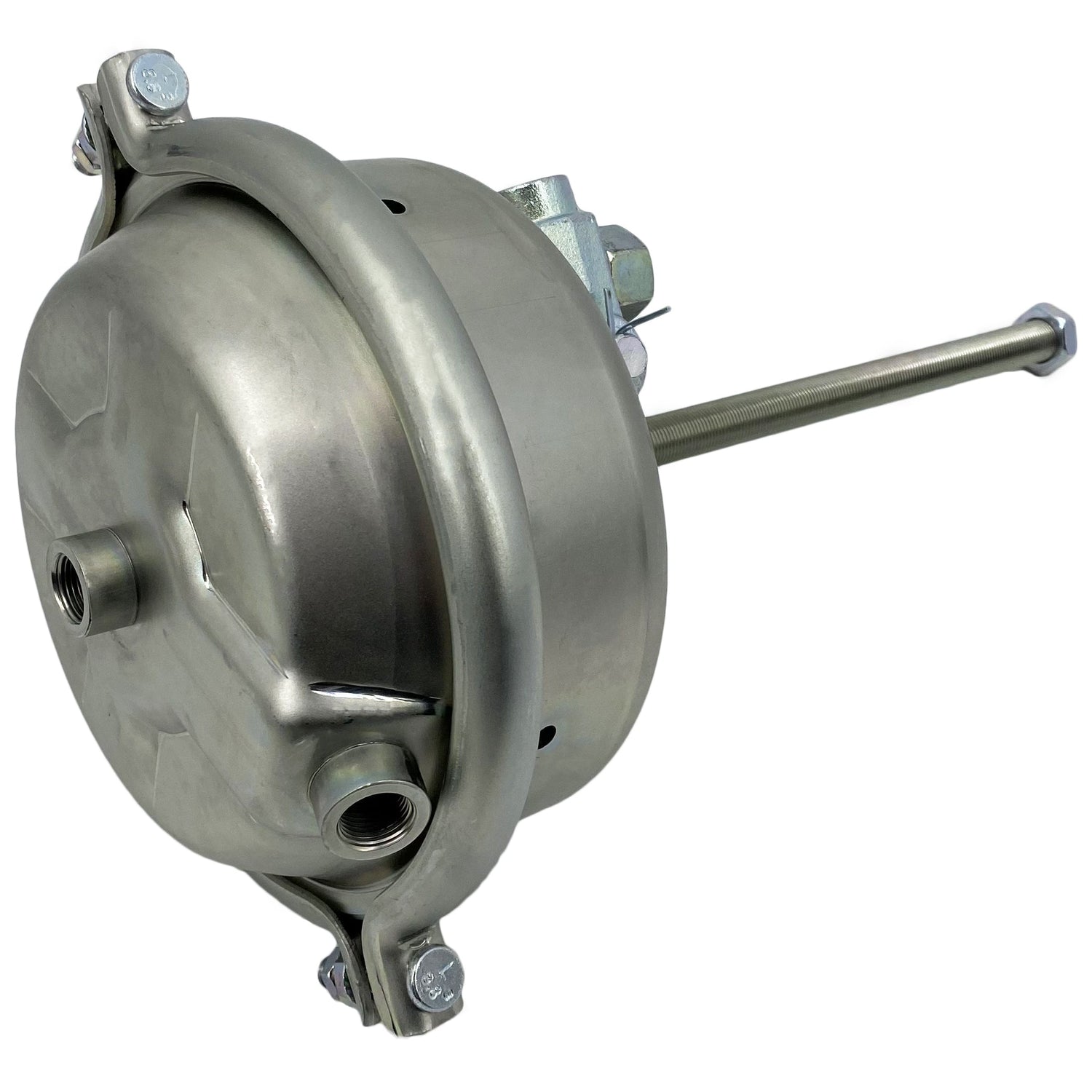

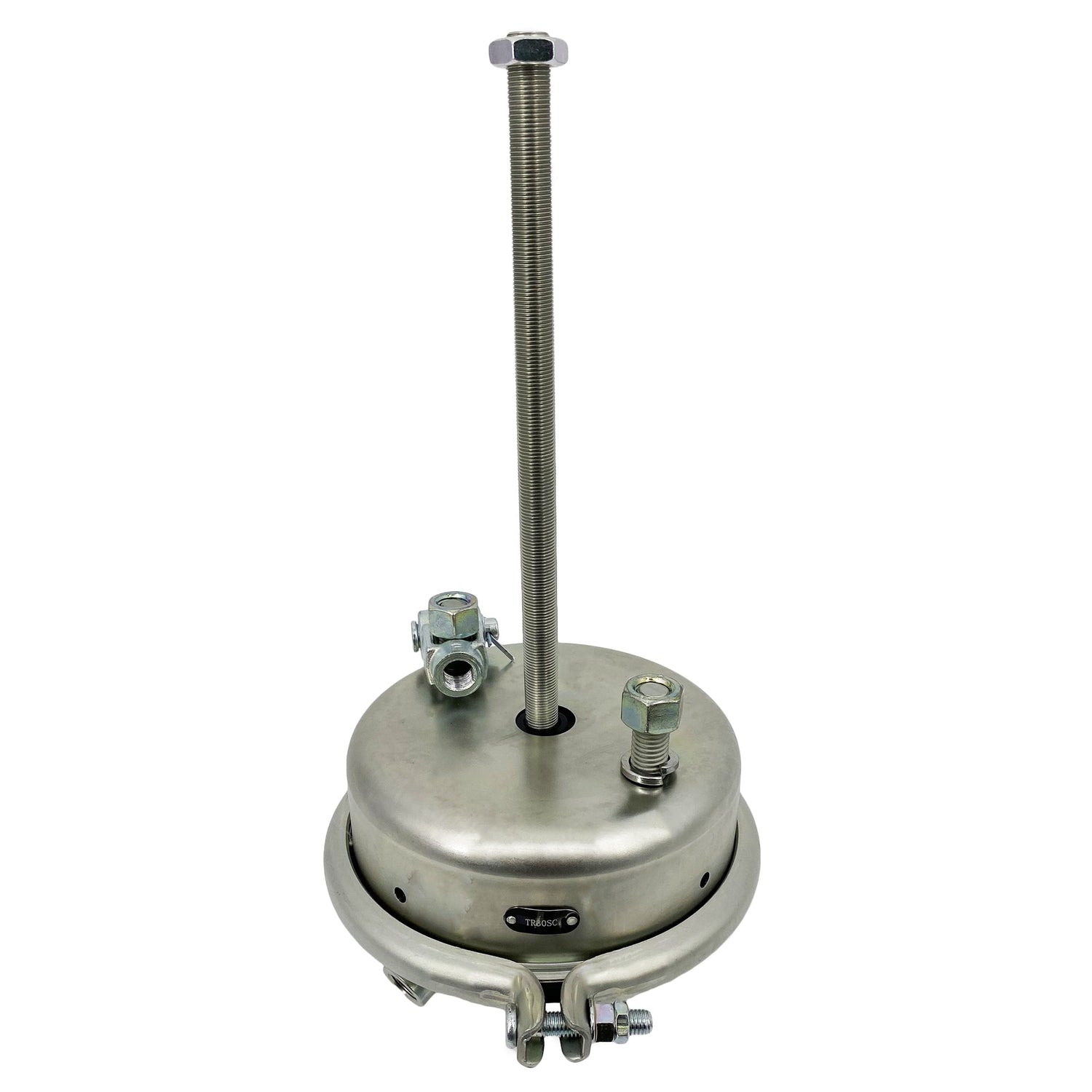

Air brake chamber service Type 30 (T30) designed for dependable service brake operation in heavy-duty air brake systems.
REPLACEMENT
Replaces Haldex SC30, 3000001, 53000001, and MA36300.
SPECIFICATIONS
Actuator type size: 30. Stroke type: standard. Available stroke: 2-1/2". Air port threads: 3/8"-18 NPTF. Length from mounting bracket to end of spring housing: 3-11/16". Dimension at service clampband: 10-3/16". Stud spacing with 5/8-11 UNC studs: 4-3/4". Pushrod length from face of service housing: 10". Pushrod threads: 5/8"-18 UNF. Air port position: 90 degree. Maximum air pressure: 150 PSI. Approximate weight: 10.3 lbs.
FEATURES
Steel pressure housing with powder-coated finish and resistance welded air ports. World-class diaphragm made from high-quality rubber compound resistant to heat and cold. Sturdy service housing with corrosion-resistant powder coating, flat bottom design using 10-gauge steel. Includes self-piloting dust shield.
WARRANTY
Covered by a 1-Year Unlimited Mile Warranty, ensuring product quality and providing replacement support if an issue occurs within the warranty period.
