Air Brake Chamber Service Type 20 | Replacement Bendix K028225
Highlight title
Text to highlight a key feature of your product
Description
Description
TYPE

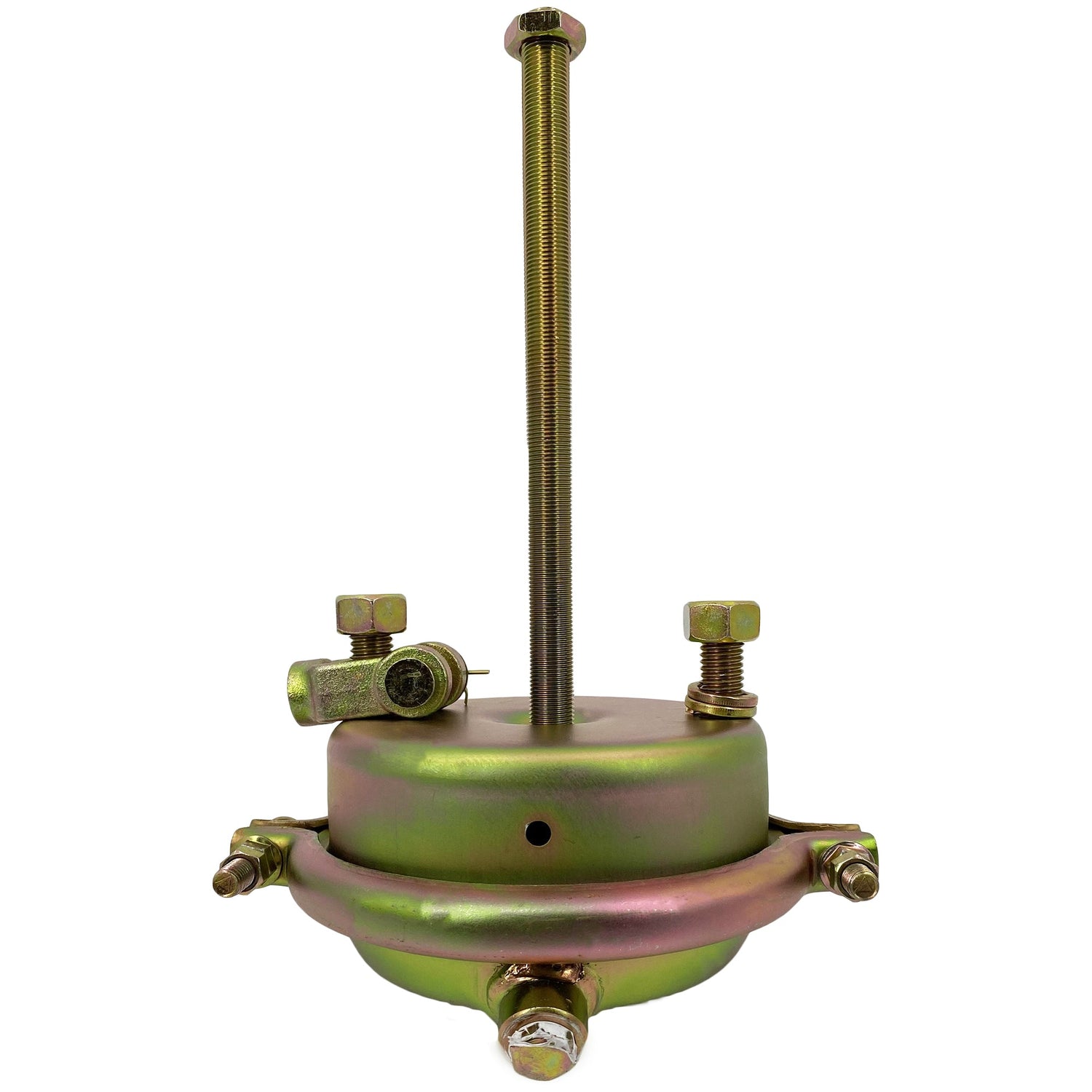

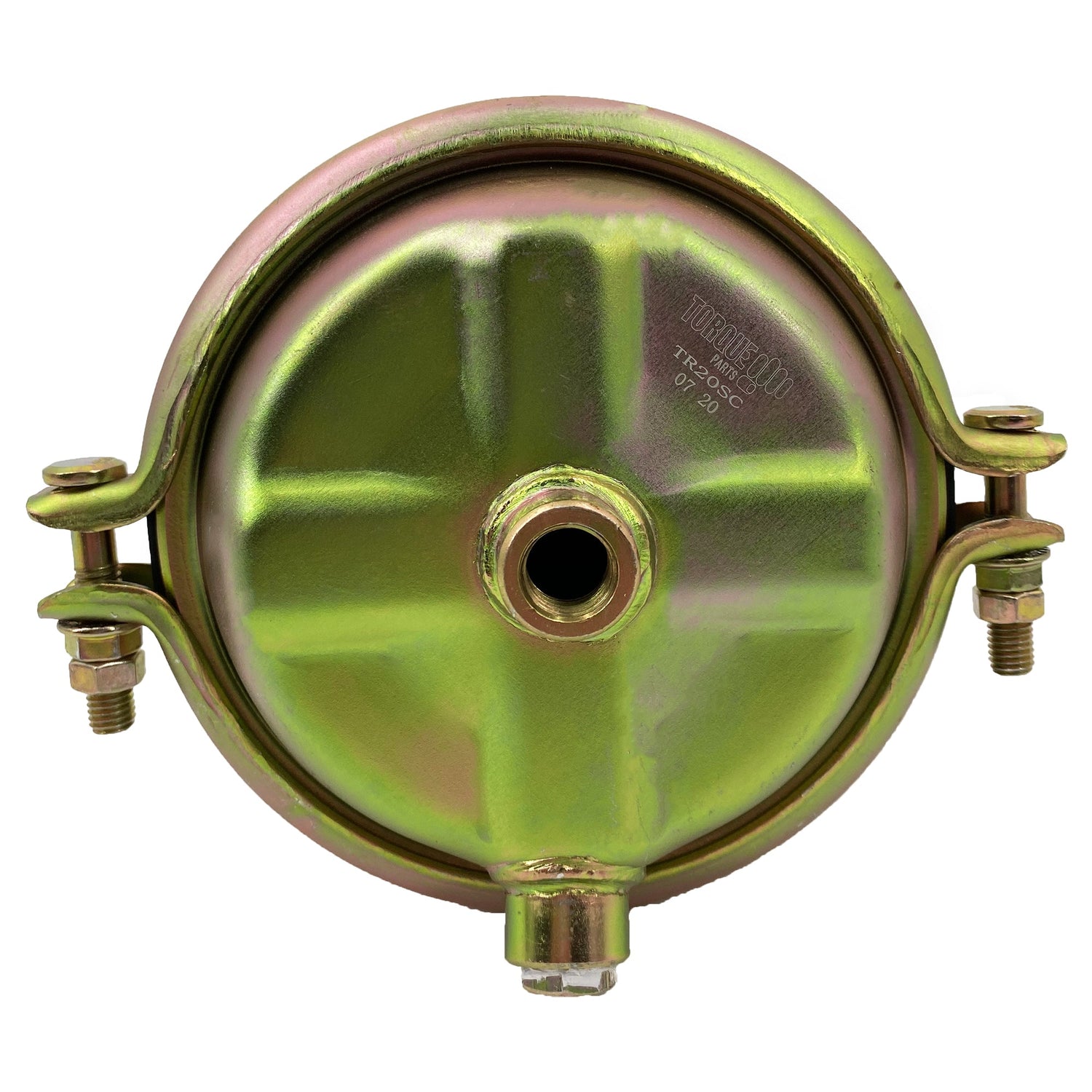

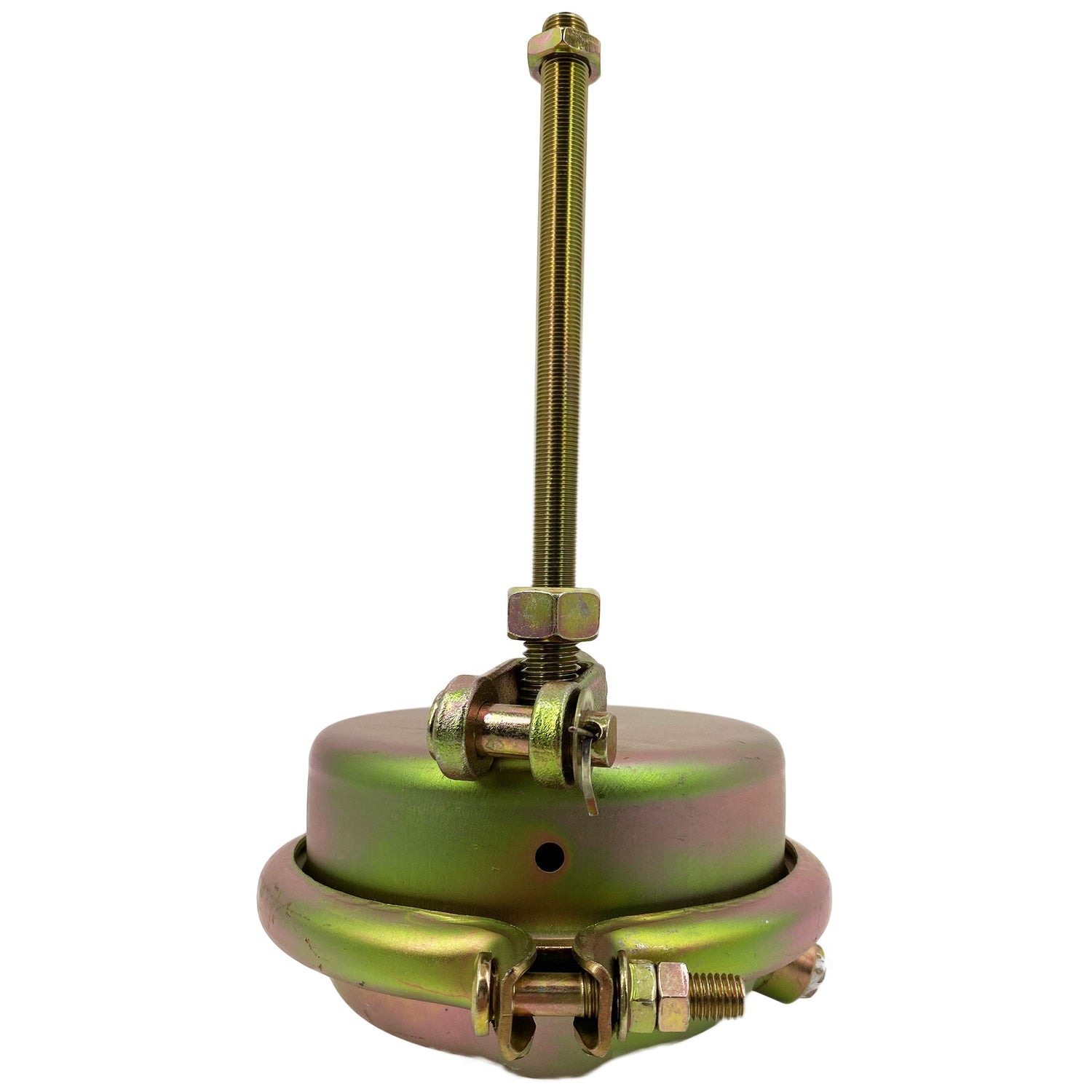

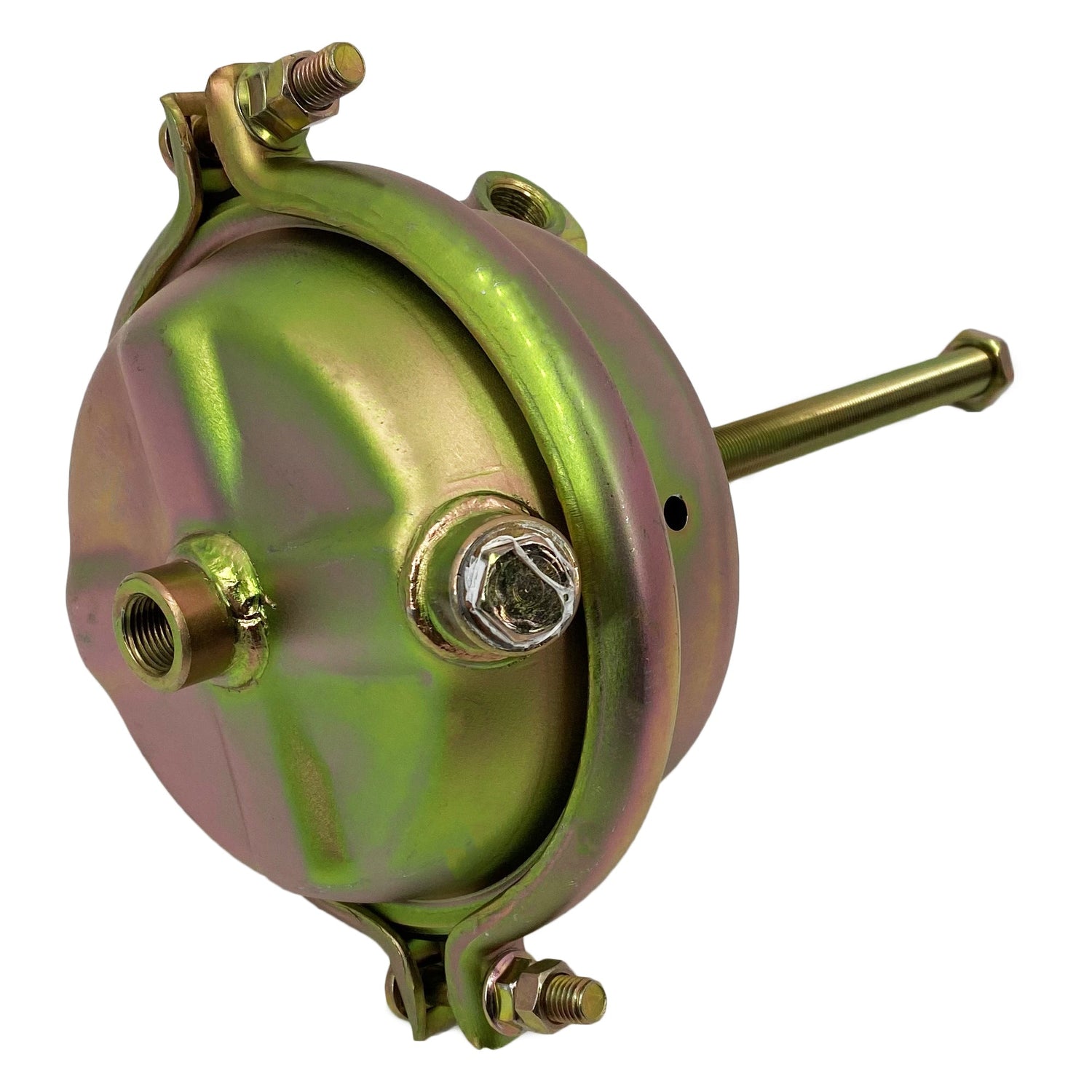

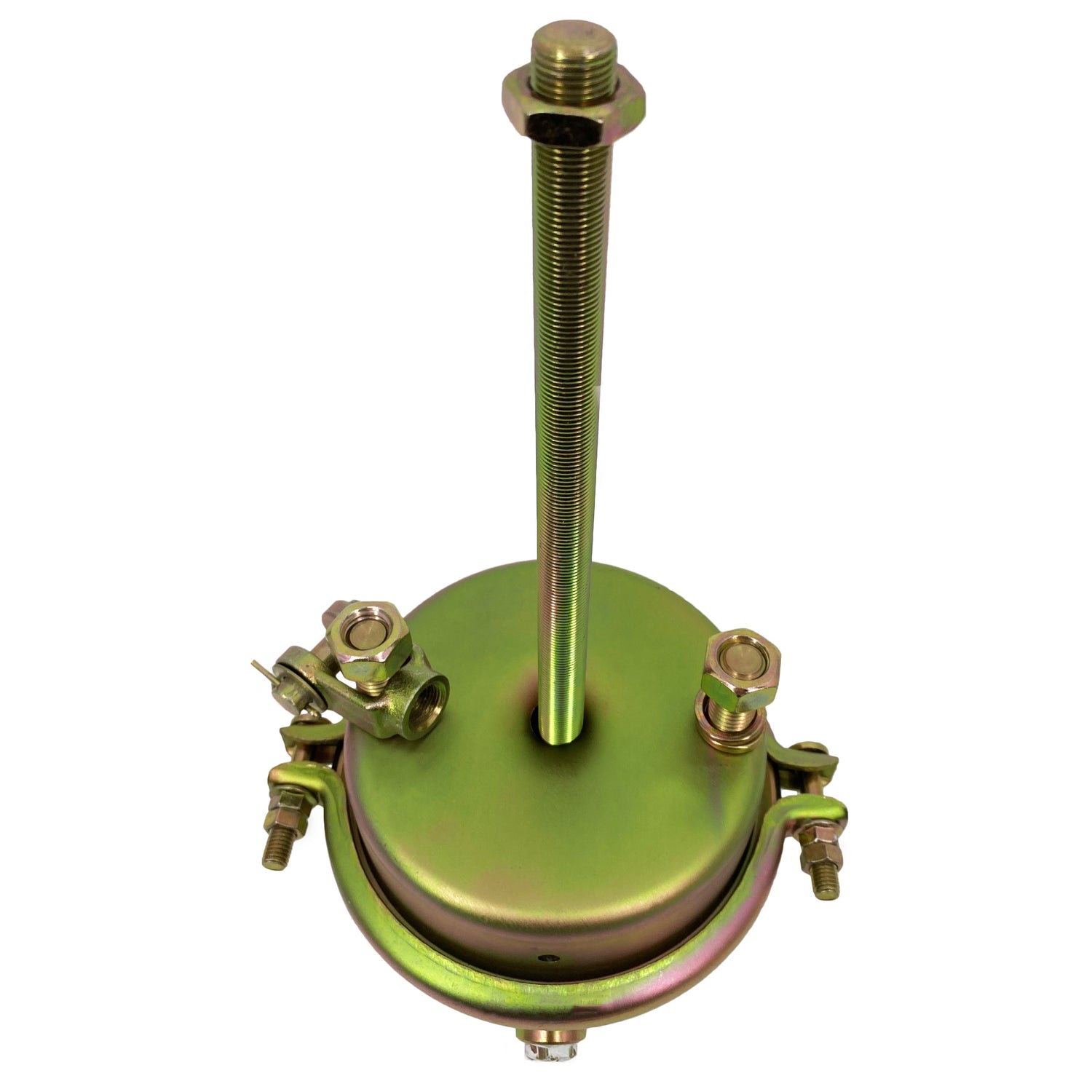

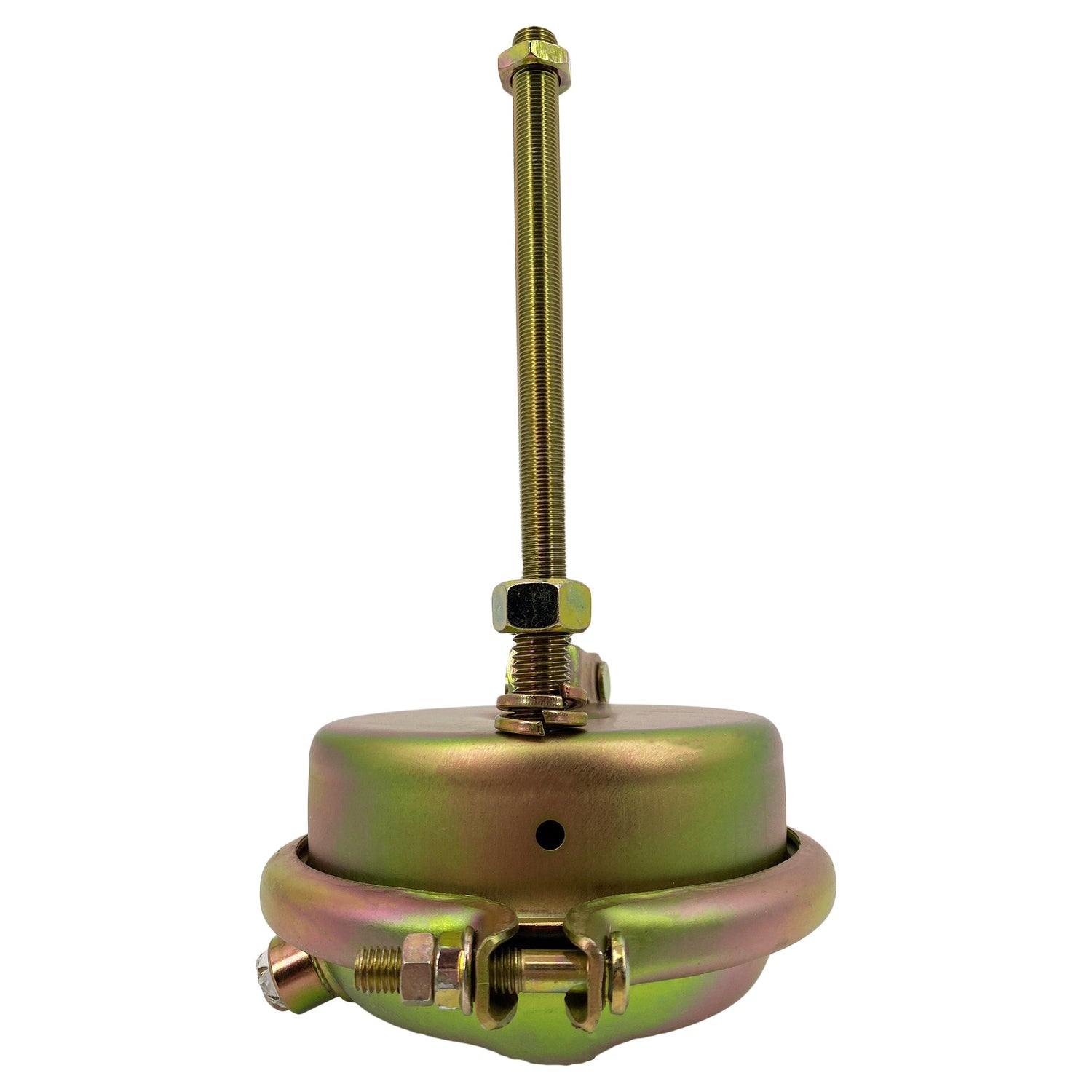

Air brake chamber service Type 20 (T20) engineered for reliable service brake performance in heavy-duty air brake systems.
REPLACEMENT
Replaces Bendix K028225, 801811, 801812, 5019641, 509642; Haldex SC20, SC20D, 125200101; MGM 1420001, 1621-CS20L; TSE 20HSCND2-3630, 20SCLD2H; Dayton 05-120; and Velvac 30017.
SPECIFICATIONS
Actuator type size: 20. Stroke type: standard. Available stroke: 2-1/4" (57 mm). Length from mounting bracket to end of spring housing: 4" (102 mm). Dimension at service clampband: 8-5/8" (218 mm). Stud spacing with 5/8-11 UNC studs: 4-3/4" (120.7 mm). Pushrod length from face of service housing: 10-3/16". Pushrod threads: 5/8"-18 UNF. Service clampband position: 0 degree. Air port position: 90 degree. Approximate weight: 7.5 lbs (3.4 kg).
FEATURES
Steel pressure housing with powder-coated finish and resistance welded air ports. World-class diaphragm made from high-quality rubber compound resistant to heat and cold, maintaining superior flexibility down to -40°F. Sturdy service housing with corrosion-resistant powder coating and step-bottom design using 12-gauge steel. Includes self-piloting dust shield.
WARRANTY
Backed by a 1-Year Unlimited Mile Warranty, providing assurance of product quality and replacement support if an issue occurs within the warranty period.
